A Three-Tube Tower: An Efficient and Economical Self-Supporting Steel Structure Solution

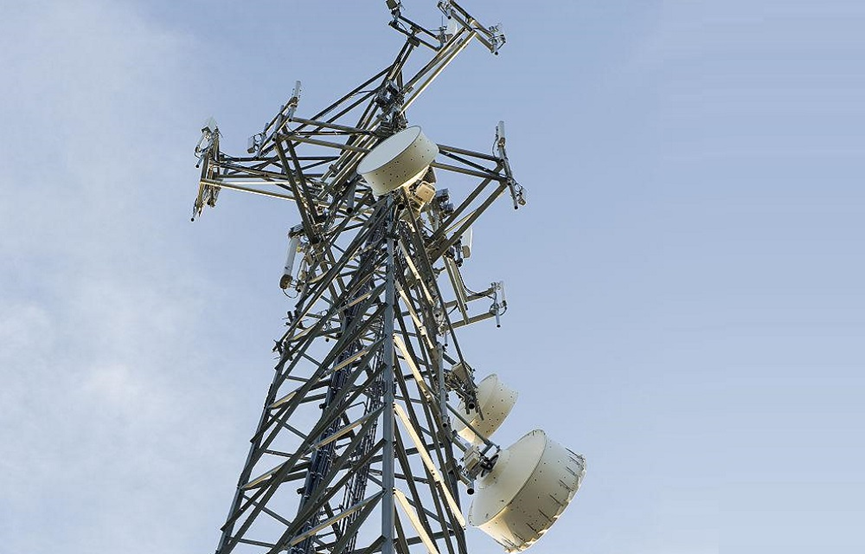

A three-tube tower is a tall steel structure composed of steel pipes, featuring a triangular cross-section and the ability to stand independently. This structural design provides distinct engineering advantages, allowing the tower to stably support various types of equipment and facilities across diverse environmental conditions.

Applicable Wind Pressure
The three-tube tower is suitable for a wide range of wind pressure environments, with a design wind pressure ranging from 0.35 kN/m² to 0.65 kN/m². This adaptability enables the tower to be deployed in various geographical and climatic conditions, meeting diverse engineering requirements.

Applicable Heights
The standard applicable heights for three-tube towers are 30 meters, 40 meters, and 50 meters. Depending on specific usage requirements and environmental conditions, an appropriate height can be selected to ensure structural stability and safety.

Advantages
– Cost-effectiveness: Compared with angle steel towers, three-tube towers have fewer components, which reduces both material and construction costs.
– Compact footprint: The structural design minimizes ground space usage, making it ideal for areas with limited available space.
– Simple structure: The design is straightforward, facilitating transportation and installation, thereby reducing construction complexity.
– Structural safety and reliability: The design undergoes rigorous engineering analysis to ensure safety and performance in various environments.
– Low wind load coefficient: The tower exhibits a relatively low wind load coefficient, enabling effective resistance to strong winds and suitability for high-wind regions.

Applicable Scenarios
The three-tube tower is particularly suitable for areas with minimal landscape requirements, such as suburban regions, county towns, rural areas, hills, and mountainous terrains. These locations typically offer relatively easy land acquisition and require minimal construction space, making them ideal for land-saving infrastructure projects. The tower can effectively support various functional needs, including communication, broadcasting, and surveillance.

Construction Period
The construction period for a three-tube tower is relatively short. The installation of the tower structure typically takes 3 to 5 days, while foundation construction requires approximately 30 to 40 days. This short construction cycle allows for rapid deployment, meeting project timelines effectively.

Foundation Types
Depending on the geological conditions of the site, three-tube towers can be supported by various foundation types, including:

– Independent foundation: Suitable for sites with favorable geological conditions, providing stable support.
– Raft foundation: Appropriate for areas with poor soil conditions, distributing loads evenly and enhancing structural stability.
– Pile cap foundation: Ideal for soft or uneven ground, significantly improving the load-bearing capacity of the structure.


As an efficient and cost-effective tall steel structure, the three-tube tower, with its distinctive design and broad range of applications, has become a critical component in modern communication, broadcasting, and monitoring infrastructure. Despite certain limitations, its advantages in terms of construction efficiency, economic viability, and spatial efficiency have led to its widespread adoption. With ongoing technological advancements, the design and construction of three-tube towers will continue to evolve, meeting increasingly stringent safety and performance standards.
