Cell Site Installation Services in Rapidly Developing Regions

Professional cell site installation services are fundamental to deploying and expanding robust wireless communication networks, particularly in rapidly developing urban centers and challenging environmental conditions. This complex undertaking involves meticulous planning, specialized engineering, precise execution, and strict adherence to safety and regulatory standards. From rooftop deployments on high-rise buildings to constructing new Telecommunications Tower structures in demanding climates, expert installation ensures network infrastructure is deployed efficiently, reliably, and safely.

This definitive guide provides an expert overview of the complete installation process. It highlights the unique challenges and best practices pertinent to modern, densely populated regions. It covers site preparation, structural work, equipment integration, and final commissioning for successful network rollouts.

What Defines Professional Cell Site Installation?

Professional cell site installation encompasses the end-to-end process of building the physical infrastructure for a wireless communication site. This includes site surveys, structural engineering, permitting, foundation work, tower or mount erection, antenna and equipment installation, power and backhaul connections, and final system testing.

It is a multi-disciplinary field requiring expertise in civil, structural, and electrical engineering, radio frequency (RF) technology, project management, and specialized construction techniques, particularly working at height. A professional provider manages all these facets seamlessly. They deliver a fully operational site that meets the network operator's specifications and complies with all local regulations and safety standards. The quality of installation directly impacts network performance, reliability, and the long-term integrity of the infrastructure investment. Comprehensive telecom tower services often begin with expert installation.

How Does it Differ from Basic Construction?

Cell site installation differs significantly due to the specialized technical requirements, the need for RF expertise, stringent safety protocols for working at height and near energized equipment, and the integration of sensitive electronic components within robust physical structures.

While it involves construction elements (concrete, steel), it is far more complex than typical building projects. Key differences include:

• RF Considerations: Antenna placement, orientation, and line-of-sight are critical for network performance, requiring specialized surveys and precision alignment.
• Working at Height: Installing equipment on tall towers or rooftops necessitates certified climbers and rigorous fall protection protocols.
• Specialized Equipment: Handling sensitive antennas, radios, and transmission lines requires specific tools and techniques to avoid damage.
• Integration: Connecting and commissioning the electronic equipment requires telecom-specific technical skills.
• Environmental Challenges: Sites must often withstand extreme weather (high winds, heat, sandstorms) requiring specific design and material considerations.

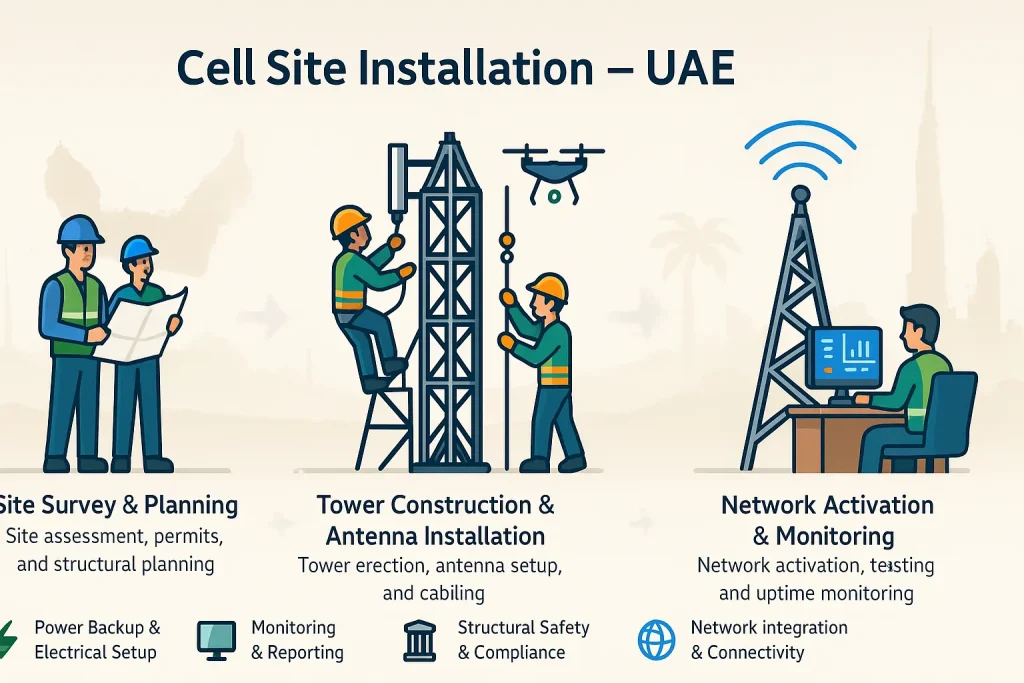

What is the Scope of a Turnkey Installation Service?

A turnkey installation service covers the entire project lifecycle, from initial site assessment to final handover of an operational cell site. This includes site surveys, design, engineering, permitting, civil works, structural erection, equipment installation, integration, testing, and documentation.

Providers offering turnkey solutions act as a single point of responsibility for the network operator. The typical scope involves:

1. Site Survey & Design: Assessing site feasibility, conducting technical surveys (structural, RF, environmental), and finalizing site design plans.
2. Permitting & Approvals: Managing applications and securing all necessary permits from local authorities (building, electrical, environmental, aviation if needed).
3. Civil Works: Site preparation, access road construction (if required), foundation excavation and pouring.
4. Structural Erection: Installing the tower, rooftop mount, or other support structure. A core part of tower installation service.
5. Equipment Installation: Mounting antennas, running transmission lines, installing ground equipment (radios, power, backhaul).
6. Integration & Commissioning: Connecting the site to the network, performing tests, and ensuring full functionality.
7. Documentation & Handover: Providing complete as-built drawings, test results, and site documentation. This comprehensive approach simplifies project management for the operator.

What Are the Critical Pre-Installation Planning Steps?

Meticulous pre-installation planning is the foundation for a successful and efficient cell site installation. This phase involves detailed site assessments, thorough engineering, securing all necessary approvals, and logistical coordination. Overlooking details during planning inevitably leads to delays, cost overruns, and potential safety issues during the construction phase.

How is Site Feasibility Determined?

Site feasibility is determined through a multi-faceted assessment covering RF viability, structural suitability, constructability, zoning compliance, and environmental impact. Engineers and site acquisition specialists evaluate if a candidate location meets technical needs and is practical to develop.

This initial assessment answers the fundamental question: "Can we build here effectively?"

• RF Survey: Confirms the location provides the desired network coverage or capacity.
• Structural Survey: For existing structures (rooftops, water towers), assesses if they can safely support the proposed equipment loads. Requires a qualified structural engineer.
• Constructability Review: Evaluates ease of access for crews and equipment (cranes, concrete trucks), ground conditions, and potential construction challenges.
• Zoning & Permitting Review: Preliminary check of local regulations to identify potential hurdles or requirements (e.g., height restrictions, aesthetic guidelines).
• Environmental Screening: Identifies potential impacts on sensitive areas (e.g., historical sites, protected habitats). Only sites passing this comprehensive feasibility check proceed to detailed planning.

What is Involved in Detailed Site Design and Engineering?

Detailed design involves creating precise engineering drawings and specifications for all site components. This includes foundation plans based on geotechnical surveys, structural designs for towers or mounts, electrical layouts, equipment placement plans, and RF antenna configurations.

Once feasibility is confirmed, detailed engineering begins:

• Geotechnical Survey: Analyzes soil conditions to design the appropriate foundation (e.g., concrete pad, piers).
• Structural Engineering: Designs the tower or rooftop mount to withstand calculated wind, ice (if applicable), and equipment loads according to TIA/EIA and local building codes.
• Electrical Engineering: Designs the power system, including grid connection, backup power (generators, batteries), grounding, and surge protection.
• Civil Engineering: Designs site grading, drainage, access roads, and fencing.
• RF Design: Specifies exact antenna types, mounting heights, azimuths (directions), and tilts for optimal network performance. These detailed plans form the blueprint for construction.

Why is Navigating Local Permitting Processes Crucial?

Navigating local permitting is crucial because failure to obtain all required approvals can completely halt a project. This involves submitting detailed plans to multiple authorities (planning/zoning boards, building departments, environmental agencies, aviation authorities) and adhering to specific local requirements and timelines.

Permitting is often the most time-consuming and unpredictable phase. Requirements vary significantly between jurisdictions, especially in regions with rapid urban development and stringent architectural standards. Challenges include:

• Zoning Compliance: Ensuring the site meets use restrictions, height limits, and setback rules. Public hearings may be required.
• Building Permits: Submitting detailed structural and electrical plans for review and approval.
• Environmental Approvals: Demonstrating compliance with environmental regulations.
• Aviation Clearances: Obtaining approvals for towers near airports or flight paths regarding height and lighting. Expertise in local regulations and established relationships with permitting bodies are invaluable for streamlining this critical phase. A proficient telecom infrastructure provider excels in this area.

How Are Logistics and Material Procurement Managed?

Logistics involve coordinating the timely delivery of all necessary materials and equipment to the site. This includes ordering steel, concrete, antennas, radios, shelters, generators, and managing transportation, especially for large or heavy components requiring specialized handling.

Effective logistical planning prevents delays during construction. Key aspects include:

• Material Ordering: Placing orders with suppliers well in advance, considering manufacturing lead times.
• Transportation: Arranging trucks, cranes, and potentially specialized transport for oversized tower sections. Coordinating delivery schedules with site access constraints.
• Staging: Designating secure on-site or near-site areas for temporary storage of materials before installation.
• Equipment Mobilization: Scheduling the arrival of construction equipment (excavators, cranes, concrete pumps) to align with the construction timeline. Smooth logistics are essential for keeping the project on schedule.

What Does the Physical Installation Process Entail?

The physical cell site installation process involves the skilled execution of the engineered plans. It requires specialized crews, heavy equipment, and unwavering adherence to safety protocols. This phase transforms the prepared site into a functional telecommunications facility.

How Are Foundations and Civil Works Constructed?

Foundation construction involves excavating according to plan, precisely placing reinforcing steel and anchor bolt templates, pouring and vibrating high-strength concrete, and allowing adequate curing time. Civil works include grading, building access roads, and installing site fencing.

The foundation is critical for the tower's stability.

• Excavation: Digging to the required depth and dimensions.
• Rebar & Anchor Bolts: Assembling the steel reinforcement cage and precisely setting the anchor bolt assembly using surveying equipment.
• Concrete Pour: Delivering and pouring the specified concrete mix, ensuring proper consolidation through vibration.
• Curing: Protecting the concrete and allowing it to cure (typically 7-28 days) to achieve its designed strength before load is applied. Concrete strength testing is mandatory. Simultaneously, other civil works like creating equipment pads, installing underground conduits for power and fiber, and erecting the site perimeter fence are completed.

What Methods Are Used for Tower or Structure Erection?

Erection methods vary based on the structure type. Cranes are commonly used to lift pre-assembled sections of monopoles or lattice towers. Gin poles offer a solution for taller towers or remote sites. Rooftop installations may use cranes or specialized rooftop lifting equipment.

The erection phase requires certified riggers and climbers.

• Crane Erection: Large mobile cranes lift tower sections or entire small structures (like rooftop tripods) into place. Crews bolt sections together at height.
• Gin Pole Erection: A temporary lifting device mounted on the tower itself lifts subsequent sections. This method is slower but suitable for very tall towers or where crane access is limited.
• Rooftop Mounts: Installation involves securing steel framework (penetrating or non-penetrating) to the building structure, ensuring waterproofing is maintained. Each method demands meticulous planning and execution to ensure safety and structural alignment. This specialized work is a core part of tower installation service.

How Are Antennas and Transmission Lines Installed?

Antennas are hoisted up the tower or onto the rooftop mount and secured at precise heights and orientations (azimuths and tilts) using specialized brackets. Transmission lines (coaxial cables or fiber optics) are carefully routed down the structure, secured with appropriate hangers, and weatherproofed.

This requires skilled tower technicians ("tower dogs").

• Hoisting: Using capstans or cranes to lift antennas and heavy cables safely.
• Mounting & Alignment: Attaching antennas to mounting pipes and precisely aligning them using compasses and inclinometers according to the RF design specifications.
• Cable Routing: Running cables along designated pathways (cable trays, ladders), ensuring proper bend radii are maintained, and securing them to prevent movement or damage.
• Weatherproofing: Applying specialized tapes and sealants to all connectors to prevent moisture ingress, which can degrade signal quality. Proper weatherproofing is critical in harsh climates.

What is Involved in Ground Equipment Installation?

Ground equipment installation involves placing and securing equipment shelters or outdoor cabinets, installing radio units, baseband controllers, power systems (rectifiers, batteries, generators), and backhaul equipment (fiber panels, microwave radios) onto racks or mounts.

Technicians work at the base of the tower or on the rooftop.

• Shelter/Cabinet Placement: Setting prefabricated shelters or cabinets onto concrete pads.
• Rack & Stack: Installing electronic equipment into standard 19-inch or 23-inch racks.
• DC Power Plant: Installing rectifiers to convert AC power to DC, battery strings for backup, and potentially generators.
• HVAC: Ensuring proper cooling systems are installed and functional, especially critical in hot climates. Heat management is a major operational challenge.
• Grounding: Connecting all equipment and the structure itself to a robust grounding system for lightning protection and electrical safety.

How is the Site Powered Up and Commissioned?

Powering up and commissioning the site is the final phase that brings the newly installed infrastructure to life. It involves connecting utilities, performing extensive system tests, and integrating the site into the broader network. This requires specialized technical skills and rigorous testing protocols.

How is Electrical Power and Backhaul Connected?

Electrical power involves coordinating with the local utility to establish a permanent grid connection to the site's power meter and distribution panel. Backhaul involves connecting the site's transmission equipment to the core network, typically via trenching fiber optic cable or aligning a microwave dish.

These connections are critical for operation.

• Power: Electricians perform the final hookup to the grid, install transfer switches for backup generators, and verify all circuits are correctly wired and protected.
• Backhaul: Fiber technicians splice and test fiber optic connections. Microwave technicians align point-to-point radio links for optimal signal strength. Redundant backhaul paths may be installed for critical sites.

What System Tests Are Performed Before Launch?

Before launch, extensive system tests verify the integrity and performance of all components. This includes antenna line sweeps (VSWR and PIM testing), power system tests (including battery and generator function), backhaul connectivity tests, and equipment diagnostic checks.

These tests ensure everything is working correctly before the site goes live.

• Antenna Line Sweeps: Verify that transmission lines and connectors are installed correctly and meet performance specifications (low signal loss, no interference). Passive Intermodulation (PIM) testing is crucial for modern networks.
• Power Tests: Confirm AC power stability, rectifier function, battery charge/discharge cycles, and automatic generator startup/transfer.
• Backhaul Tests: Verify bandwidth, latency, and packet loss on the connection to the core network.
• RF Tests: Initial checks of signal transmission and reception.

How is the Site Integrated into the Network?

Integration involves remotely configuring the base station equipment (radios, baseband units) by network engineers. They load site-specific software parameters, define neighbor cell relationships, and connect the site to the network management system for monitoring and control.

This step connects the physical site to the operator's live network. Engineers, often working from a central location, configure the cell's operating frequencies, power levels, and relationships with adjacent cell sites. They ensure the new site is recognized by the core network and is ready to handle traffic.

What Final Performance Optimization Occurs?

Final performance optimization involves drive testing and parameter adjustments. Field engineers measure actual signal coverage and quality around the new site. Based on this real-world data, they may fine-tune antenna tilts, power levels, or software parameters to optimize performance and minimize interference.

This crucial step ensures the site delivers the expected coverage and capacity in its actual operating environment. Drive test teams use specialized equipment to map signal strength and quality. Network engineers analyze this data and make adjustments remotely to maximize the user experience. This optimization might continue periodically throughout the site's life.

What Are the Unique Challenges in Dense Urban or Harsh Environments?

Performing cell site installation in densely populated high-rise districts or regions with extreme climates presents unique and significant challenges. These environments require specialized planning, equipment, and techniques beyond those used for standard tower builds in open areas. Addressing these challenges effectively is a mark of a highly capable installation provider.

How Are Rooftop Installations Managed on High-Rises?

Rooftop installations require detailed structural analysis of the host building, careful coordination with building management regarding access and safety, specialized lifting solutions (cranes, helicopters, or internal lifts), and meticulous attention to waterproofing and aesthetics.

Working on occupied high-rise buildings is complex:

• Structural Integrity: Verifying the roof can handle the weight and wind load is paramount. Reinforcements are often needed.
• Logistics: Getting heavy equipment (shelters, generators, antennas) to the roof requires careful planning, often involving street closures for cranes or complex rigging.
• Safety: Fall protection protocols must be adapted for rooftop environments. RF safety zones must be clearly established.
• Aesthetics: Installations often face strict requirements to minimize visual impact, requiring concealed mounts or architecturally integrated designs. Building permits can be complex.

What Are the Challenges of Working in Extreme Heat?

Working in extreme heat requires specific safety protocols for personnel (hydration, work/rest cycles, heat stress monitoring) and considerations for equipment (using components rated for high temperatures, ensuring adequate cooling for electronics).

Regions experiencing extreme ambient heat pose risks:

• Personnel Safety: Heatstroke is a serious risk. Work schedules may be adjusted to avoid the hottest parts of the day. Cooling vests and hydration stations are essential.
• Equipment Performance: Electronic equipment generates its own heat. In high ambient temperatures, robust cooling systems (HVAC, fans) are critical for preventing overheating and failure. Equipment must be specified with appropriate operating temperature ranges. The reliability of power for cooling systems is also crucial. The impact of heat on electronic reliability is significant.
• Material Handling: Metal components can become extremely hot to the touch, requiring extra care during handling.

How is RF Interference Managed in Dense Areas?

Managing RF interference in dense urban areas involves meticulous RF planning, careful antenna selection and placement (including precise tilting), and potentially using shielding or specialized filtering techniques. Coordination between different operators sharing sites is also critical.

Cities are crowded RF environments. Signals bounce off buildings (multipath), and multiple cell sites operate in close proximity. Minimizing interference is key to network performance.

• RF Design: Using sophisticated modeling tools to predict signal propagation and interference patterns.
• Antenna Technology: Employing antennas with narrow beamwidths and adjustable electrical tilt to precisely control signal direction.
• Shielding: Sometimes necessary on rooftops to block unwanted signals from adjacent equipment.
• Coordination: Tower companies play a vital role in coordinating frequencies and antenna placements among co-located tenants.

How Do Aesthetic Regulations Impact Installation?

Aesthetic regulations in many urban areas dictate the appearance and placement of cell sites. This often requires concealing antennas (stealth designs), using specific paint colors, minimizing visible cabling, and adhering to strict height and setback limits.

"Techno-phobia" or concerns about visual blight lead many municipalities to impose strict aesthetic rules. Installation providers must be adept at:

• Stealth Solutions: Designing mounts that conceal antennas within flagpoles, clock towers, church steeples, or custom architectural enclosures.
• Color Matching: Painting equipment cabinets and antenna radomes to blend with the surrounding building or environment.
• Concealed Cabling: Routing transmission lines inside structures or using integrated cable management systems.
• Permitting Expertise: Navigating design review boards and presenting solutions that meet aesthetic requirements. These skills are crucial for gaining approvals in sensitive locations.

Conclusion

Professional cell site installation services are the essential engine driving the expansion and evolution of wireless networks. In rapidly developing regions and challenging environments, the complexity of this task demands exceptional expertise, rigorous planning, and an unwavering commitment to safety and quality. From navigating intricate permitting processes in dense cities to executing flawless installations in extreme climates, leading providers deliver the robust physical infrastructure that enables seamless connectivity. Their work, often unseen high above or hidden within structures, is fundamental to building the interconnected future. Choosing a partner with proven capabilities in this specialized field is paramount for any operator aiming for network excellence.
