CNAS Approved Steel Support for Power Substation: 2025 Guide

What is CNAS Certification in Steel Structure Manufacturing?

CNAS is the abbreviation for China National Accreditation Service for Conformity Assessment. CNAS approved steel support for power substation is the national body that a product passes rigorous Chinese and international quality assurance and testing standards. A laboratory or a manufacturer that holds a CNAS accreditation is recognized all over the world and follows the ISO/IEC 17025 standards for laboratory testing.

•  Mechanical strength testing

•  Corrosion resistance evaluation

• Load-bearing simulations

•  Weld and fabrication quality inspection

Why is CNAS Approval Critical in Substation Structures?

Steel used in power substations needs to withstand wind loads, electrical faults, vibrations, and shifts in temperature. Constant exposure to these stressors creates a demand for the steel to be tested, certified, and proven to withstand electrical grid environments.

Key Benefits of CNAS Approved Steel Support for Power Substations

1. Unmatched Reliability

Steel support systems that carry the CNAS mark are trusted for exceptional reliability. Each system undergoes thorough testing to ensure it can withstand the extreme loads and environmental conditions common in power substations. This guarantees stable long-term performance without compromise.

2. Consistent Mechanical Performance

With CNAS certification, the integrity of each part’s strength, load-bearing capacity, and weld integrity will be retained uniformly across the board. Thanks to this uniformity, engineers can craft their designs with steel, confident that it will support predicted stresses from vibrations and temperature swings.

3. Verified Safety Compliance

In high-voltage environments, the safety of personnel and technology becomes critical. Meeting international standards such as ISO/IEC 17025, CNAS-certified steel minimizes the chance of a structural failure while also shielding workers, equipment, and surrounding areas from potential harm.

4. Long-Term Durability

Structures made of CNAS-approved steels are hot-dip galvanized and corrosion resistant, which increases their lifespan to over thirty years. This is especially true in harsh environments such as coastal zones, deserts, and icy regions. With enhanced longevity, maintenance and downtime are significantly reduced.

5. Ease of International Trade

With abridged customs and export processes, subsidiaries of CNAS are recognized globally. This facilitates trade with international buyers. Furthermore, cross-border public and private infrastructure projects are guaranteed to meet construction requirements.

Types of CNAS Certified Steel Structures Used in Substations

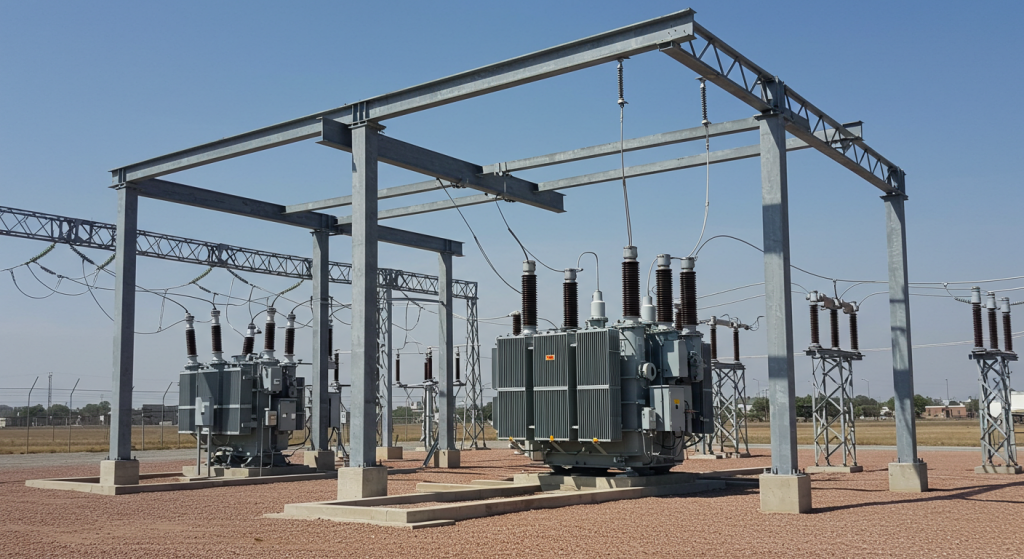

1. Steel Gantries

These structures are suspended wires and therefore must support incoming and outgoing conductors whilst also being protected from corrosion.

2. Equipment Support Frames

These structural frames are meant to hold the weight of circuit breakers, transformers, CTs, PTs, and isolators. The precise dimensioning and vibration resistance provided by CNAS certification ensure their reliability.

3. Lightning Mast Structures

To channel lightning surges safely, CNAS maintains proper grounding and structure design clearances by international safety standards.

4. Cable Trays and Trenches

These cable trays and trenches are made of stainless steel to contain control and power cables and are tested for moisture as well as load-bearing capacities.

How to Verify CNAS Certification in Steel Support Products?

It is imperative to verify certifications when purchasing concrete steel supports with CNAS approved steel support for power substation. Claims should never suffice; official documentation must be provided to prove compliance with set international criteria for safety and quality.

CNAS Certificate of Conformity

Request from your supplier a valid CNAS Certificate of Conformity, which indicates the product has undergone conformance testing in a CNAS-accredited laboratory and complies with the relevant standards, including ISO/IEC 17025.

Third-Party Lab Reports

Obtain reports from independent laboratories confirming the steel’s chemical composition, tensile strength, and structural integrity. These non-partisan credentials provide dependable quality assurance.

Steel Mill Test Certificates (MTC)

Every batch of steel must be accompanied by an MTC stating its grade (like Q235 or Q345), date of manufacture, and mechanical properties. This also guarantees that the material is appropriate for use in substations.

Galvanization Test Results

Make sure the steel was hot-dip galvanized, and obtain the test results for the coating thickness and corrosion resistance—essential for outdoor durability over time.

Welding Inspection Reports

Lastly, do not forget to request the welding quality inspection reports. These documents demonstrate that the requisite strength, alignment, and safety clearances for the load have been adhered to.

Applications Across the Power Grid

The certified steel supports are indispensable for:

•          132kV–500kV substations

•          Grid expansion projects

•          Renewable power switchyards

•          Urban distribution substations

•          Export-grade utility structures

Why Choose CNAS Approved Steel From XY Tower?

As one of China’s leading steel structure manufacturers, we bring:

Technical Expertise

Our in-house engineers oversee every support frame’s CAD designs to ensure they are grid-ready, including construction and load-bearing calculations.

Certified Assurance

All your structures are manufactured by us and tested in-house using CNAS ISO/IEC 17025 accredited labs, complying with international benchmarks.

Buyer’s Guide: Steps to Source the Right CNAS Steel Support

Consider these recommendations to streamline your purchasing:

1. Determine Voltage Level and Load Type

Are you working on a 132kV or 500kV substation? Each has unique requirements for steel thickness and reinforcement.

2. Confirm CNAS and ISO Certifications

These two certifications ensure compliance with both the materials used and the processes taken.

3. Inquire About Customization

Each layout of a substation varies, and tailored steel frameworks reduce both time and costs associated with installation.

4. Drawing and Load Test Report Requests

Ensure the steel supports are properly designed, not just assembled.

5. Quality Check Reports After Galvanization

This confirms the structure will not corrode and can withstand harsh environmental conditions.

Global Market Insight: Who is Purchasing CNAS Certified Steel Structures?

Many governments are now requiring CNAS certification for steel used in the construction of power grids, especially for internationally funded projects:

• NTDC (National Transmission & Despatch Company) of Pakistan

• Utility contractors from the Middle East, such as Saudi Arabia and the UAE

• Power ministries in Africa, as funded by Chinese EPCs

• Bulk steel support systems for substations export purchasers

 Conclusion

Power substations constitute the essential ‘hubs’ of our electric Grid. CNAS approved steel support for power substation requires steel structures capable of enduring time, load, Extreme weather, and global quality standards. With CNAS-approved steel supports for power substations, you gain peace of mind while achieving compliance and resiliency. XY Tower integrates technical strength with certified quality and custom engineering for the construction of tomorrow’s infrastructure.
