Electrical Transmission Tower Installation for Seamless Power Delivery

What is Electrical Transmission Tower Installation?

The Electrical transmission tower installation is the construction of structures designed to carry high-voltage power cables. These structures make it possible to transmit power over vast distances, from power stations to substations and, finally, to residences and businesses.

These sequential methods comprise:

•Establishing a foundation for the transmission tower

•Assembling the tower

•Lifting and bolting the tower

•Tower stringing and grounding conductors.

The achievement of each step of the process is dependent on accuracy, experience in engineering, proper safety procedures, and hardcore disciplined work standards.

Electrical Transmission Tower Installation Steps

Route Planning & Surveying

Engineers thoroughly survey a particular area prior to beginning the installation. This ensures that the optimal tower type is chosen while taking legal regulations, environmental concerns, and other factors into account.

Constructing the Foundation

The concrete base must bear the full weight of the hefty and tall towers:

• The foundation type (pad, pile, or grillage) also needs to be defined based on the soil test outcome.

• The cast-in-place concrete base for the towers is prepared on-site.

• In this step, the tower’s grounding for efficient electrical safety must also be ensured.

Assembly of Steel Structure

Sub-sub-steps to erecting the tower steelwork comprise:

• Ground-level pre-assembly of modules

• Frame assembly using bolt connectors and powerful fastener joints

• Galvanizing individual segments to prevent rusting

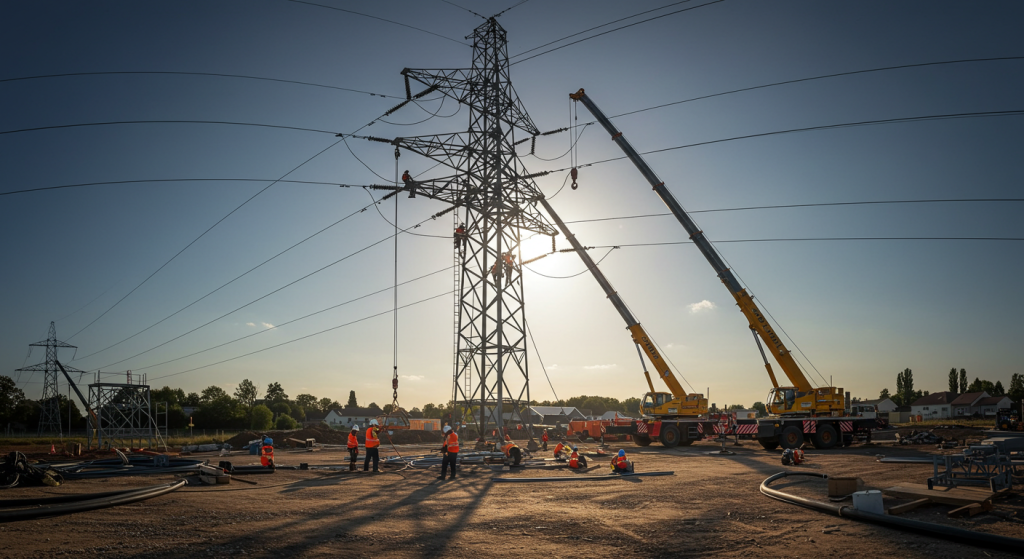

Erecting the Tower

Depending on the height of the tower, it may be lifted by a crane or a gin pole. The following tasks are included in the lifting of the tower:

• Finalizing the Vertical Bolting of the tower

• Ensuring the tower has been expertly aligned and leveled

Sufficient care needs to be taken during this stage. In areas where the demand is particularly high, live line tower installation is often employed.

Stringing Conductors on Transmission Towers

With the tower in place, power lines can be hooked up.

This includes:

Adding Insulators

•  Employing strung conductor equipment like tensioners and pullers.

•  Lightning safety ground wire installation.

The speed at which it can be completed using drones or helicopters is unmatched in more remote locations. The weight and stress of the conductors require special handling for EHV (Extra High Voltage) and UHV (Ultra High Voltage) installations.

Safety in Transmission Tower Construction

The safety of personnel involved in the construction of transmission towers is overseen through a combination of international and national codes hinged on legal requirements. Some commonly accepted best practices are:

Application of personal protective equipment (PPE)

•  Frequent checks of the site

•  Safety drills and training sessions

• Adherence to NEPRA and IEC, and electrical standards

The consequences of accidents in the high-voltage area are blunt and fatal. They make risk assessment and mitigation strategies mandatory.

Equipment Used in Installation

Normal processes and procedures rely on the following tools and equipment:

•  Cranes and gin poles

•Stringing equipment (pullers and tensioners)

• Tower-lifting tools and jacks

• Safety equipment such as harnesses and earthing devices

• Grounding testers

The use of such machinery simplifies the achievement of safety and precision.

Guidelines for Constructing a Transmission Tower

• Insert the text here

• This could be a suggestion noted in the feasibility study.

• Significantly more cost-effective in the long run.

• Do not plan for the superstructure’s foundation without performing soil tests.

• Conduct safety meetings at the start of each day.

• Use the least-consumption energy methodologies and materials.

• All of these policies are sustainable, efficient, and of good quality.

Projects With Towers Used for Transmission

Our team successfully managed several projects within the South Asian regions of the world. We specialize in every aspect of energy development infrastructure, from building substations to mounting power lines.

Featured services include:

• Cross-arm installation

• Auxiliary components of transmission towers and insulators are put in

• Building Utilities and their long-term maintenance

• Wind vanes and other tools for gauging the speed and direction of the wind

Durable and Precision-Engineered Line Towers by X.Y. Tower

At X.Y. Tower, we manufacture Power Infrastructure Line Towers. X.Y. Tower builds our products out of protected steel that is galvanized for long life. Our Tubular Steel poles and Steel Lattice Towers are reliable and built to last against harsh weather and strong wind demands, and they are precision-engineered to alleviate strain.

We always conduct rigorous quality checks for safety compliance on every tower for both EHV and UHV transmission line projects, ensuring they meet international safety standards. Due to ease of installation and low maintenance requirements further strengthened by corrosion resistance, unmatched value is delivered by our towers over time.

• Superior functionality
• Custom designs available
• Timely delivery & competitive pricing

For additional details, do explore our capabilities in manufacturing line towers.

Comprehensive Services for Transmission Lines

From the early stages of planning to the final step of energization, the entire lifecycle of power line infrastructure is covered under our Transmission Line Services. With the best vehicles and tools in the market to guarantee the utmost safety and efficiency, our specialist teams always employ modern methodologies to the latest equipment for the safe and efficient execution of tower construction, foundation installation, and conductor stringing.

Our services also include:

•    Overhead high-voltage transmission line design and engineering

• Construction and erection of power transmission towers

•  Maintenance and inspection of above-ground power lines

•    Upgrades to address increasing energy demand

Energy-efficient materials, together with smart designs, are applied while proven construction methods are employed in other project timelines to lower operational costs.

Main Advantages of Our Transmission Line Solutions

Ensured operational safety and effectiveness for power transmission

Efficient and Safe Solutions

The tower systems supplied by us minimize power wastage while allowing for grid boost maximization and stability, which guarantees uninterrupted energy supply over long distances.

Extended Lifespan Savings

Infrastructure life and maintenance expenses are savings you can achieve through our optimized tower design and corrosion-resistant materials.

Advanced grid technologies and increased power requirements can be seamlessly integrated with our smart grid-enabled flexible towers.

Conclusion

Critical steps in powering the modern world include the Electrical transmission tower. XY Tower provides decades of experience and innovation in your Electrical transmission tower installation, ensuring precision at every level, from design and engineering to safety and execution. We’re here to support you, whether it’s for providing expert guidance on constructing a transmission tower or planning a grid expansion.
