30m Monopole Tower
15m/30m/40m Monopole Communication Tower: Hot-dip galvanized steel, wind/quake resistant, multi-antenna support, quick installation for 4G/5G & broadcast transmission.
- Standard 30m (customizable: 15-40m)
- High-strength galvanized steel (Q235/Q345)
- diameter ~0.8-1.2m, top diameter ~0.3-0.5m
- Max wind speed resistance: ≥60 m/s (Typhoon-level 12).
- Supports 2-3 antennas + RRU equipment
- Operating temp. -40℃ ~ +70℃
- ISO 1461 (galvanizing), ETSI EN 300 192
15m Monopole Tower/30m Monopole Tower/40m Monopole Communication Tower

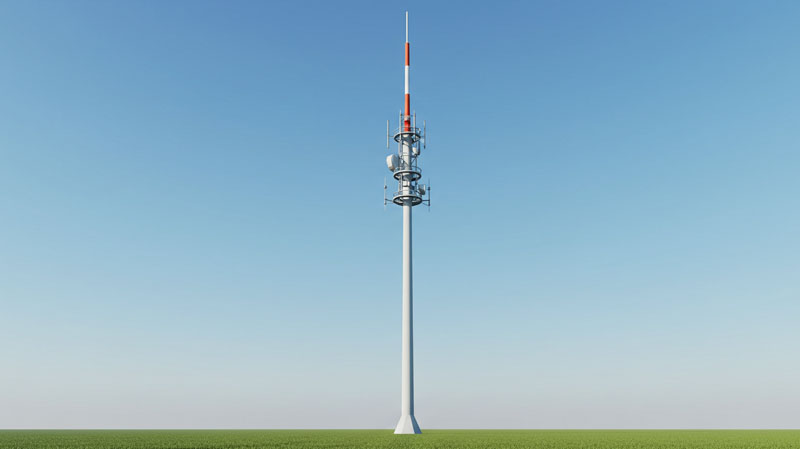

The 30-meter Monopole Tower is a high-strength, lightweight, and easy-to-install support structure designed for wireless communication applications, including 4G/5G base stations, microwave transmission, and broadcast TV. Its single-pole design minimizes space usage, making it ideal for urban, suburban, or terrain-constrained areas while maintaining aesthetic appeal.
Technical Specifications
| Parameter | Specification |
|---|---|
| Height | 30m (sectional) |
| Wind resistance | 60 m/s |
| Seismic rating | Grade 8 (GB 50011) |
| Operating temp. | -40℃ ~ +70℃ |
Compliance Standards
- International: ISO 1461 (galvanizing), ETSI EN 300 192

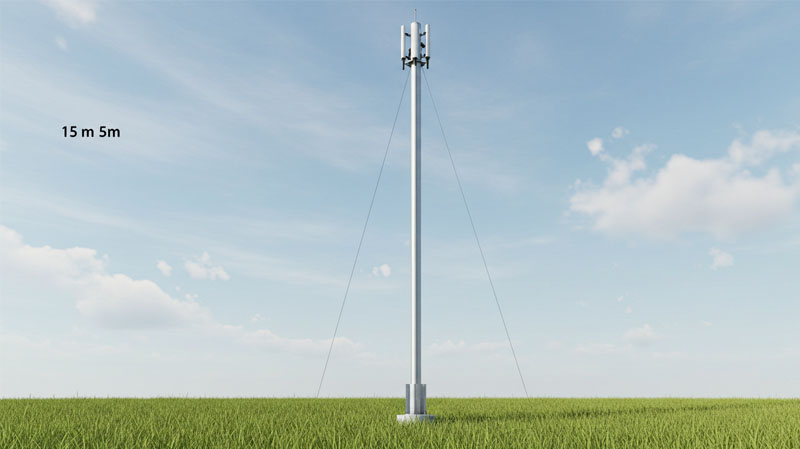

The 15m Monopole Tower is a sleek, freestanding structure designed for telecommunication, broadcasting, and wireless network applications. Made from high-quality galvanized steel, it offers durability and corrosion resistance. Its compact design requires minimal ground space, making it ideal for urban and rural installations. The tower supports multiple antennas and can withstand harsh weather conditions. Easy to install and maintain, it ensures reliable signal transmission. Customizable heights and mounting options are available. Suitable for 4G/5G, radio, and surveillance systems.
Key Features:
-
15m height, galvanized steel
-
Low footprint, high stability
-
Weather-resistant, long lifespan
-
Compatible with various antennas
-
Quick installation & low maintenance

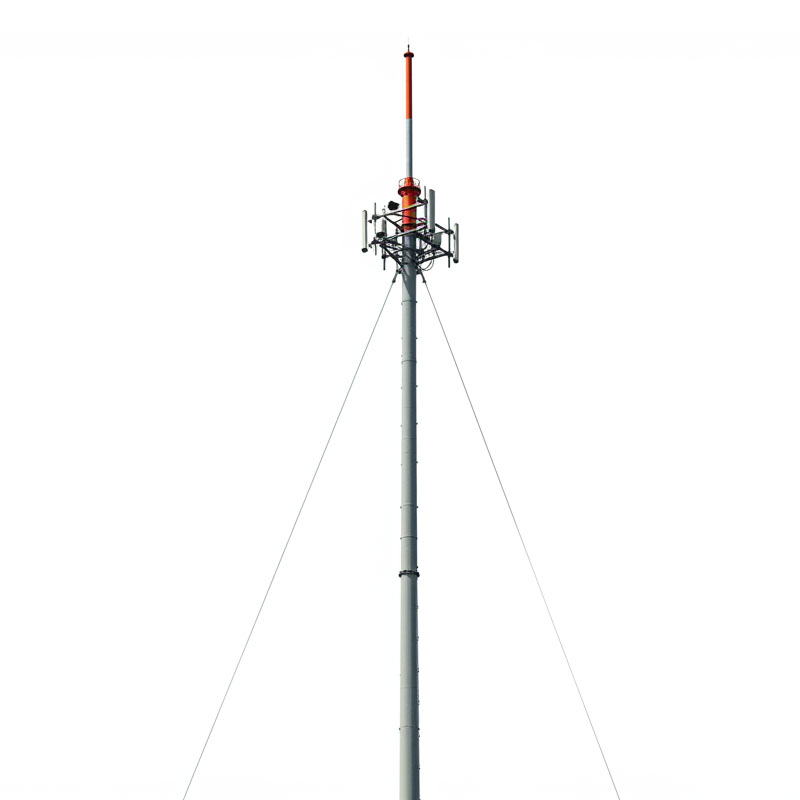

The 40m Monopole Tower is a robust, self-supporting structure designed for high-capacity telecommunication networks, including 4G/5G, microwave transmission, and broadcasting. Constructed from high-strength galvanized steel, it ensures superior durability and corrosion resistance. Its slim design minimizes land use while providing stable support for multiple antennas and equipment. Engineered to withstand extreme winds and seismic loads, it is suitable for urban and remote deployments. Prefabricated for easy installation and maintenance.
Key Features:
-
40m height, hot-dip galvanized steel
-
High load capacity, supports multiple antennas
-
Wind-resistant (up to 200 km/h)
-
Modular design for quick assembly
-
Low maintenance, long service life

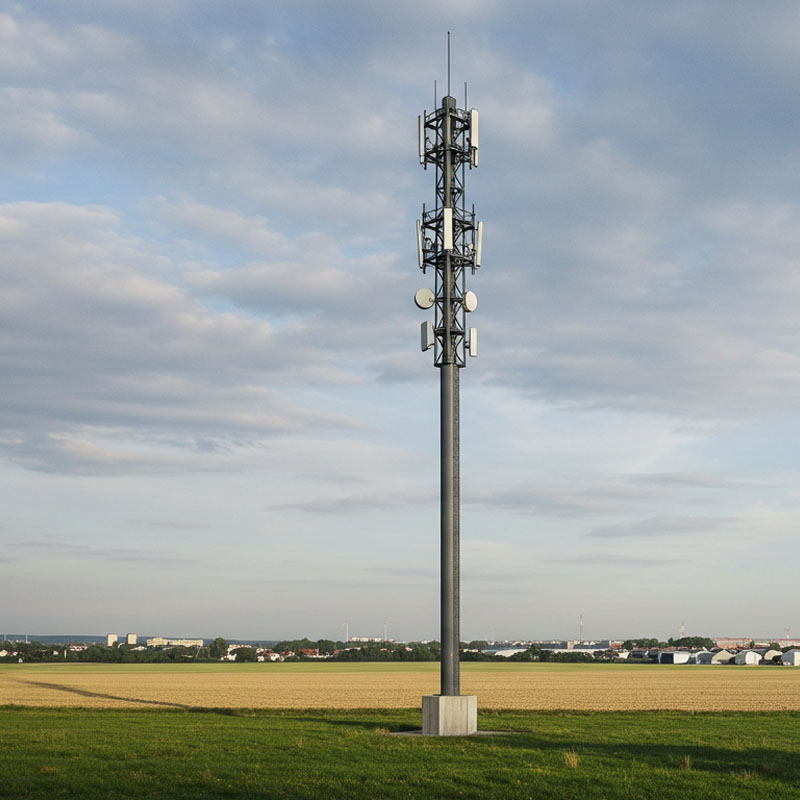

A durable and space-saving telecom structure, ideal for 4G/5G, broadcasting, and wireless networks. Made from hot-dip galvanized steel for superior corrosion resistance and long-term reliability. Its sleek monopole design requires minimal ground space while supporting multiple antennas and equipment. Engineered to withstand high winds (up to 200 km/h) and harsh weather conditions. Prefabricated for fast installation and low maintenance.
Key Features:
-
30m height, galvanized steel
-
Compact footprint, high stability
-
Wind & seismic resistant
-
Easy assembly & maintenance
-
Customizable antenna mounts
Feature
-
Structural Design
-
Type: Tapered monopole (self-supporting, no guy wires).
-
Height: Standard 30m (customizable: 25-40m).
-
Material: High-strength galvanized steel (Q235/Q345), corrosion-resistant, service life ≥25 years.
-
Diameter: Base diameter ~0.8-1.2m, top diameter ~0.3-0.5m (tapered design).
-
-
Load & Wind Resistance
-
Max wind speed resistance: ≥60 m/s (Typhoon-level 12).
-
Platform capacity: Supports 2-3 antennas + RRU equipment (total weight ≤1.5 tons).
-
-
Installation & Maintenance
-
Modular segmented design, bolted connections for rapid assembly (requires crane).
-
Foundation: Concrete base (size varies by soil conditions, typically 4×4×3m).
-
Integrated climbing ladder and safety platforms compliant with OSHA/EN standards.
-
-
Applications
-
Mobile networks (4G/5G), microwave links, emergency communications, broadcast coverage.
-
Ideal for streets, industrial zones, highways, and space-limited sites.
-
Optional Configurations
-
Surface Finish: Hot-dip galvanized (standard), powder coating (custom colors).
-
Accessories: Antenna mounts, lightning rods, lighting systems, surveillance mounts.
-
Compatibility: Multi-operator colocation (shared tower support).
Advantages
-
Space-saving: Footprint of only 1-2m², ideal for dense urban areas.
-
Cost-efficient: Short installation time, low maintenance.
-
Aesthetic flexibility: Can be designed as a decorative pole or streetlight for minimal visual impact.
Specification
| Model | Height (m) | Top Diameter (mm) | Base Diameter (mm) | Max Wind Speed | Antenna Capacity | Weight (approx.) |
|---|---|---|---|---|---|---|
| 15m | 15 | 120-180 | 400-600 | 160 km/h | 3-6 antennas | 800-1,200 kg |
| 30m | 30 | 180-240 | 600-900 | 200 km/h | 6-12 antennas | 2,500-3,500 kg |
| 40m | 40 | 240-300 | 800-1,200 | 220 km/h | 12-18 antennas | 4,500-6,500 kg |
Related Resources
Monopole towers are widely used in telecommunications, street lighting, and power transmission due to their sleek design, ease of installation, and structural efficiency. However, their design and construction must comply ...
READ MORE

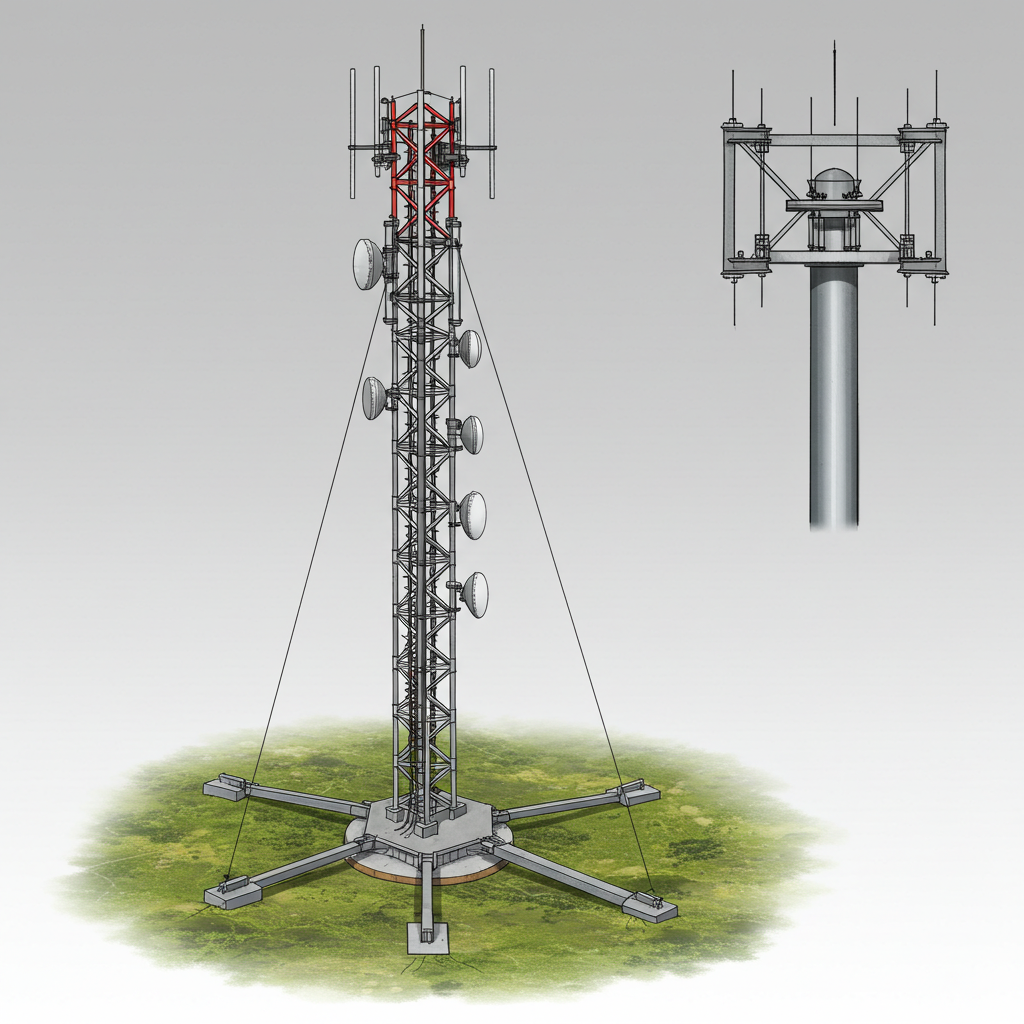

Monopole towers are widely used in telecommunications, broadcasting, and amateur radio due to their sleek design, ease of installation, and minimal footprint. However, mounting multiple antennas on a monopole requires ...
READ MORE

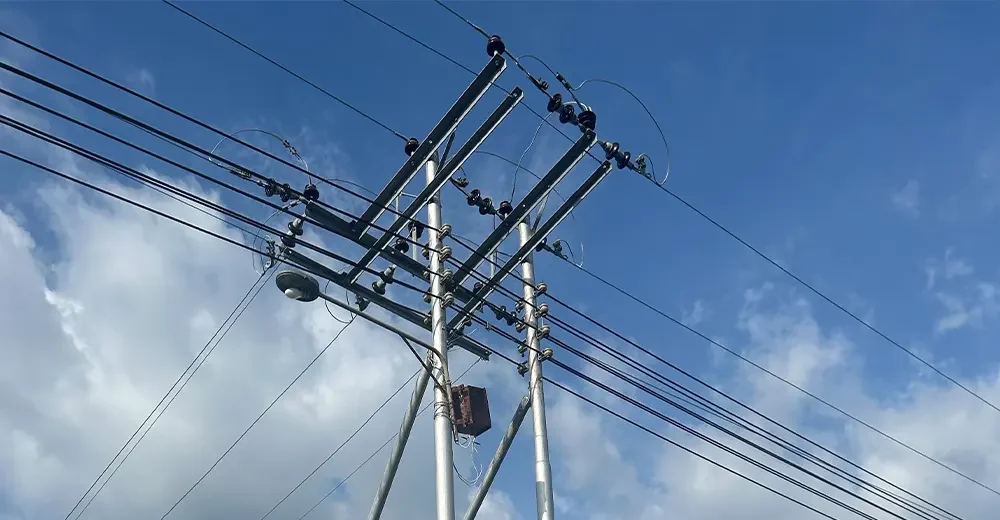

The 100-ton, 9-meter electric monopole project jointly developed by our factory and the Philippines has been successfully completed. During construction, our technical team addressed the local challenges of high temperature, ...
