Steel Lattice Tower
Our Steel Lattice Towers provide robust support for telecommunications, power transmission, and broadcasting systems. With high-strength materials, optimized structural designs, and corrosion-resistant coatings, they deliver long-lasting performance and superior load capacity. Tailored designs ensure reliable support for antennas and heavy equipment in diverse environments.
- Service Type: Steel Lattice Tower Design, Fabrication, and Installation
- Material Expertise: High-grade steel (Q235, Q355, Q420)
- Design Standards: ISO 9001:2015, AWS D1.1
- Surface Treatment: Hot-Dip Galvanizing (ASTM A123)
- Applications: Telecommunications, power transmission, broadcasting, wind turbines, and microwave towers
Overview

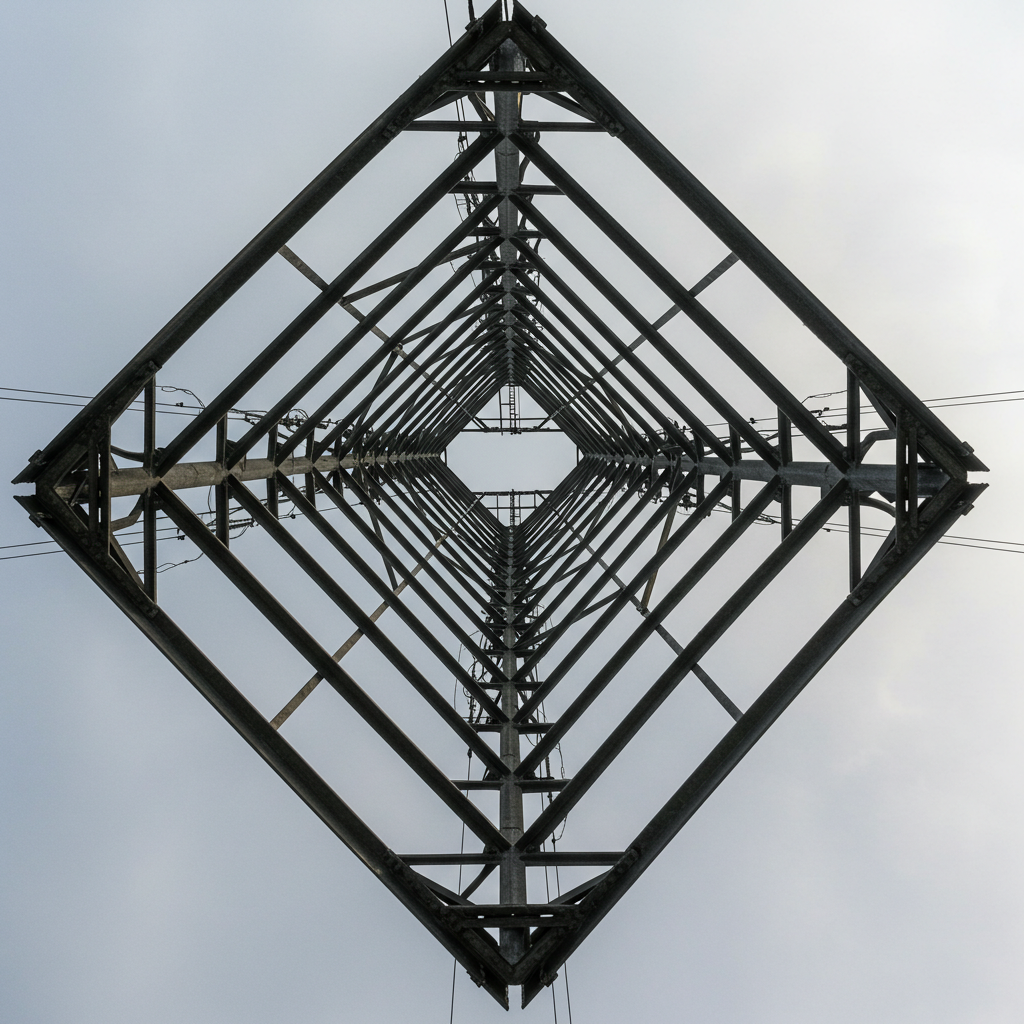

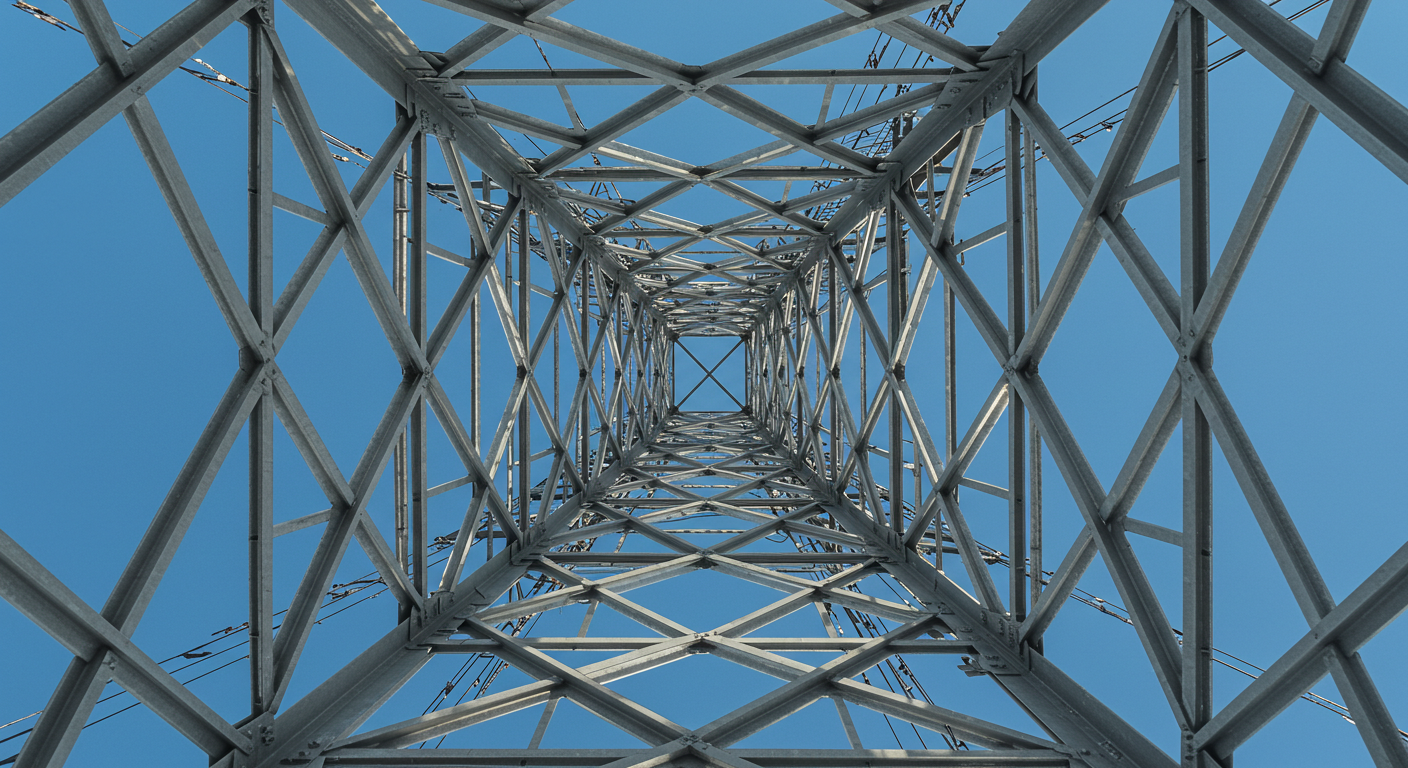

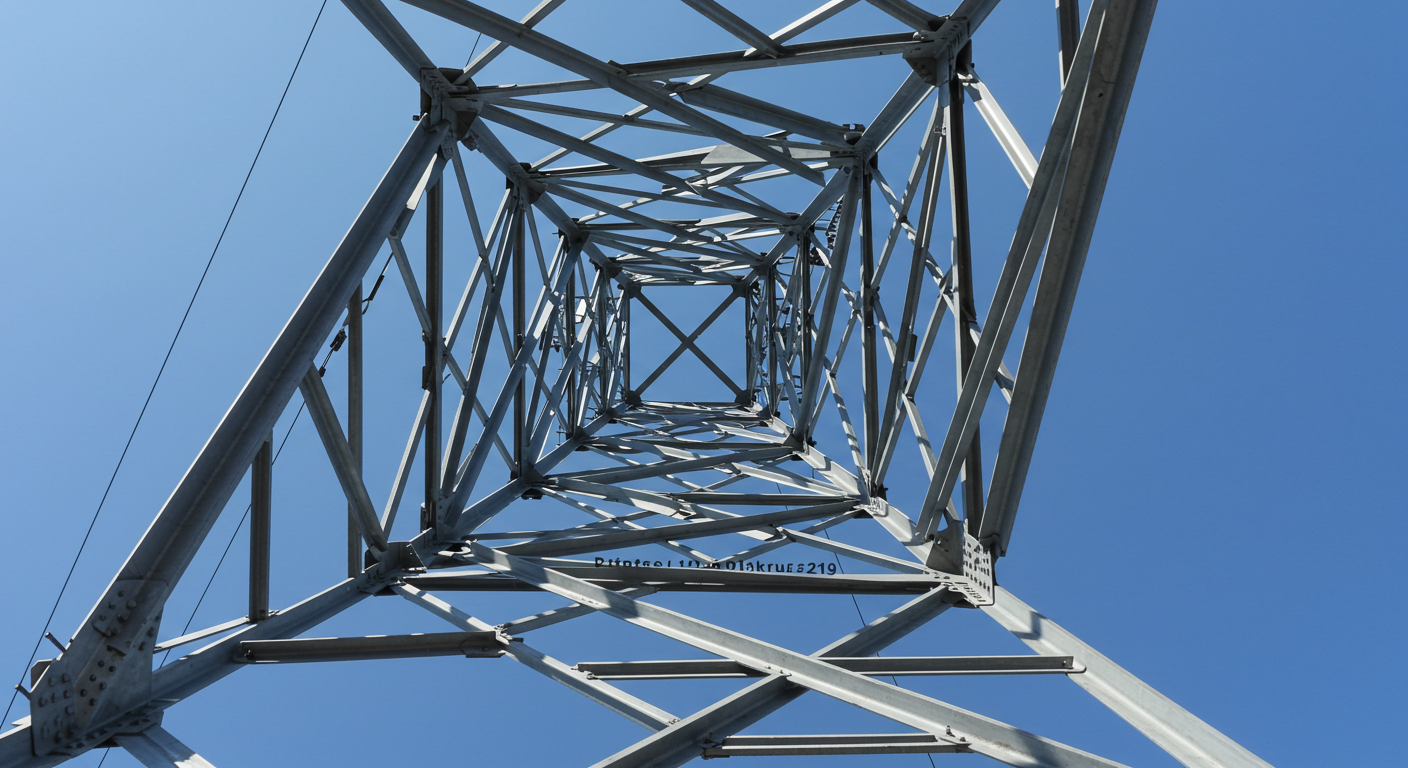

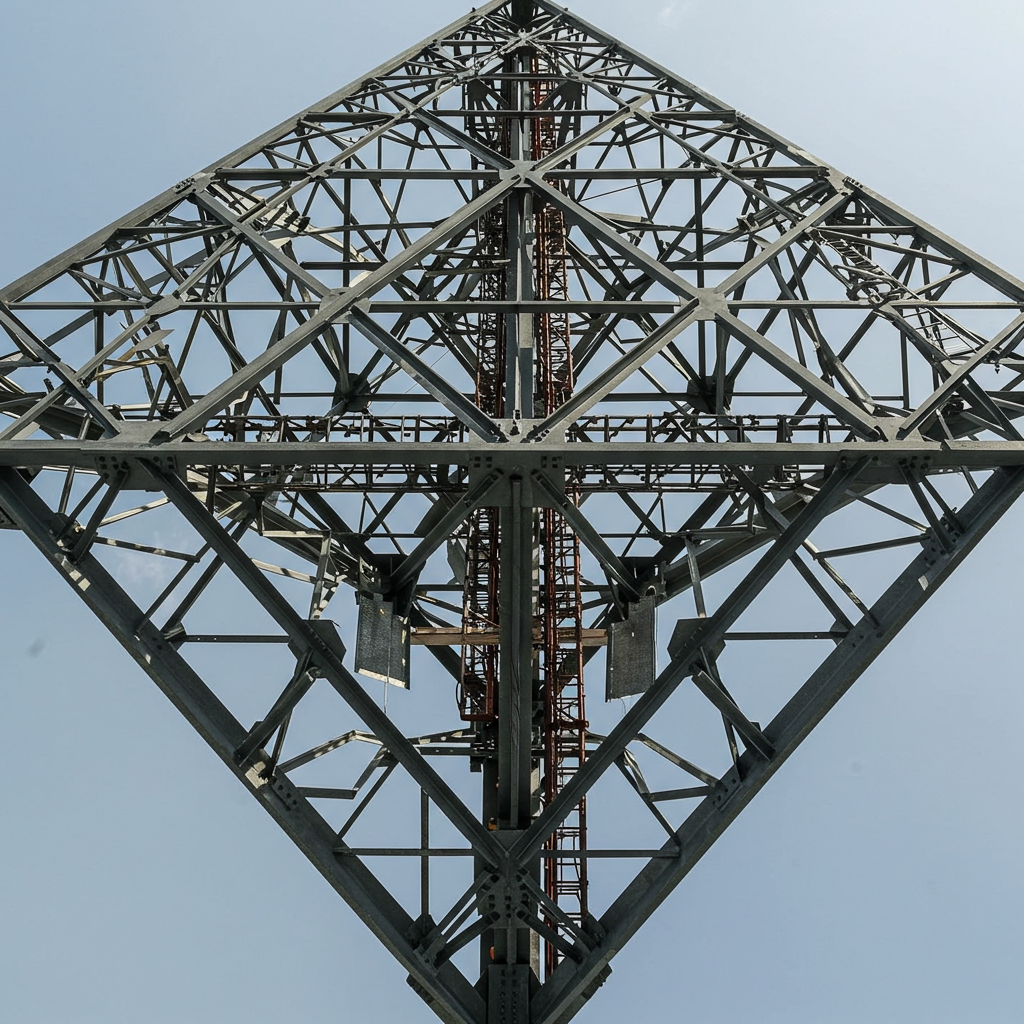

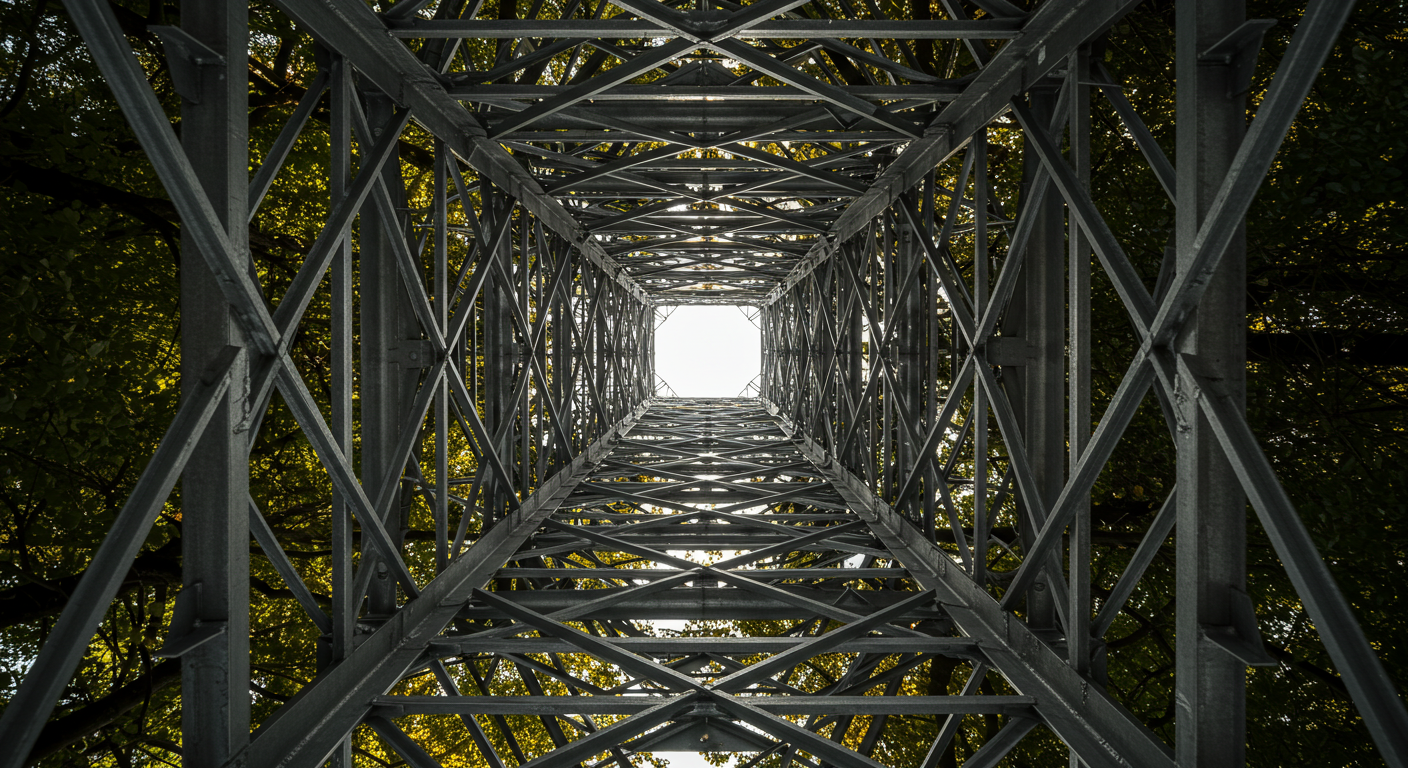

Our Steel Lattice Towers are designed for optimal strength, durability, and efficiency, making them ideal for a variety of applications such as telecommunications, power transmission, and broadcasting. Built with angular or tubular steel sections arranged in a lattice pattern, they offer excellent load distribution, wind resistance, and long-term performance. These towers are customizable to meet specific height and equipment load requirements, ensuring reliable support for antennas, transmission lines, and heavy equipment in diverse environments.
- Durable Steel Construction: High-strength steel with corrosion-resistant coatings ensures long-term performance and structural integrity.
- Superior Load Capacity: Designed to support antennas, power lines, microwave dishes, and heavy telecom equipment.
- Customizable Designs: Tailored to meet project-specific height, load, and environmental requirements.
- Wind and Seismic Resistance: Engineered to handle high wind loads, seismic activity, and harsh weather conditions.
- Scalable Infrastructure: Easily accommodates additional antennas and future expansions.
- Efficient Installation: Modular and pre-fabricated components simplify transportation and on-site assembly.
- Corrosion Protection: Hot-dip galvanized steel ensures protection against rust and degradation.
- Telecommunications: Towers supporting 4G, 5G, broadband, and wireless networks.
- Power Transmission: Infrastructure supporting high-voltage power lines.
- Broadcasting and Microwave: Infrastructure for radio, TV, and microwave communication systems.
Our Steel Lattice Towers undergo rigorous quality inspections to ensure compliance with international safety and performance standards. Every component is tested for structural integrity and long-term durability.
Feature
Long-Lasting and Reliable Performance:
Our Steel Lattice Towers are designed to withstand environmental stress, including high winds, seismic activity, and corrosion. The high-grade steel and protective coatings provide a service life exceeding 30 years with minimal maintenance.
Optimized for Load and Stability:
The lattice design optimizes load distribution and weight management, allowing the tower to support heavy antennas, transmission lines, and equipment while maintaining stability under varying environmental conditions.
Safety and Compliance Focused:
We adhere to ISO9001:2015, AWS D1.1, and other international standards to ensure structural safety and performance. Safety features such as lightning protection and secure grounding are integrated into every design.
Streamlined Installation and Maintenance:
Our modular and pre-fabricated designs allow for quick and cost-effective installation while providing easy access for maintenance and upgrades.
Specification
| Details | Additional Information |
|---|---|
| Brand: Xiangyue (XY Tower) | Height Options: Customizable from 10m to over 120m tall |
| Service Offering: Steel Lattice Tower Design, Fabrication, and Installation | Environmental Adaptability: Designed for high winds, seismic zones, and various environmental conditions |
| Expertise: Specialized in designing and constructing lattice towers for telecom, power, and broadcasting applications | Load Capacity: Capable of supporting heavy antennas, power lines, and additional network equipment |
| Design Standards: Adheres to ISO9001:2015, AWS D1.1, and telecom industry standards | Certification: Meets international safety, quality, and structural certifications |
| Material Specification: Uses high-grade steel, including Q235, Q355, and Q420 | Customization Level: Fully tailored designs to meet project-specific requirements |
| Welding Standard: Certified AWS D1.1 welding procedures | Installation Assistance: Provides on-site guidance and modular assembly instructions |
| Surface Treatment: Hot-Dip Galvanizing and protective coatings for corrosion resistance | Global Reach: Serving clients worldwide with designs adapted to local regulations |
| Quality Control: Comprehensive inspections during design, production, and installation | Post-Design Support: Ongoing maintenance, upgrade services, and technical support |
