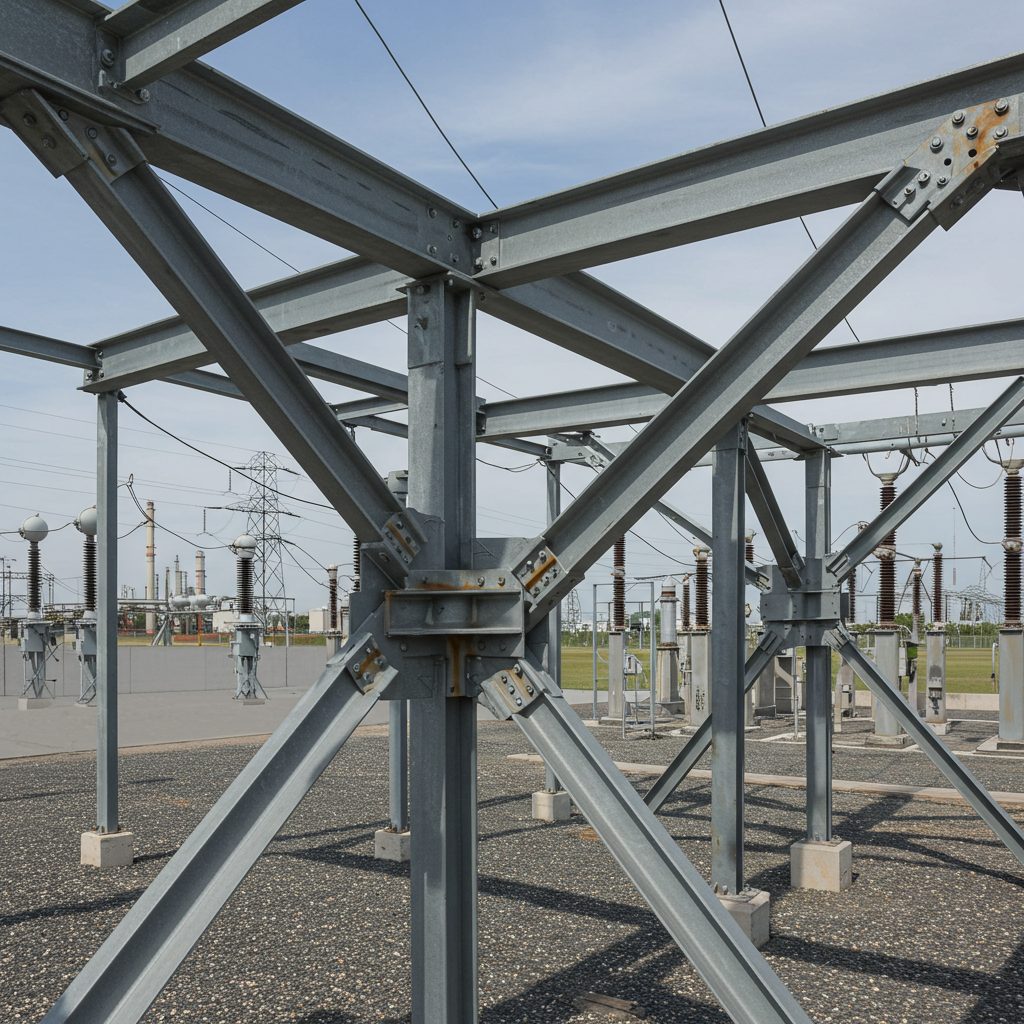

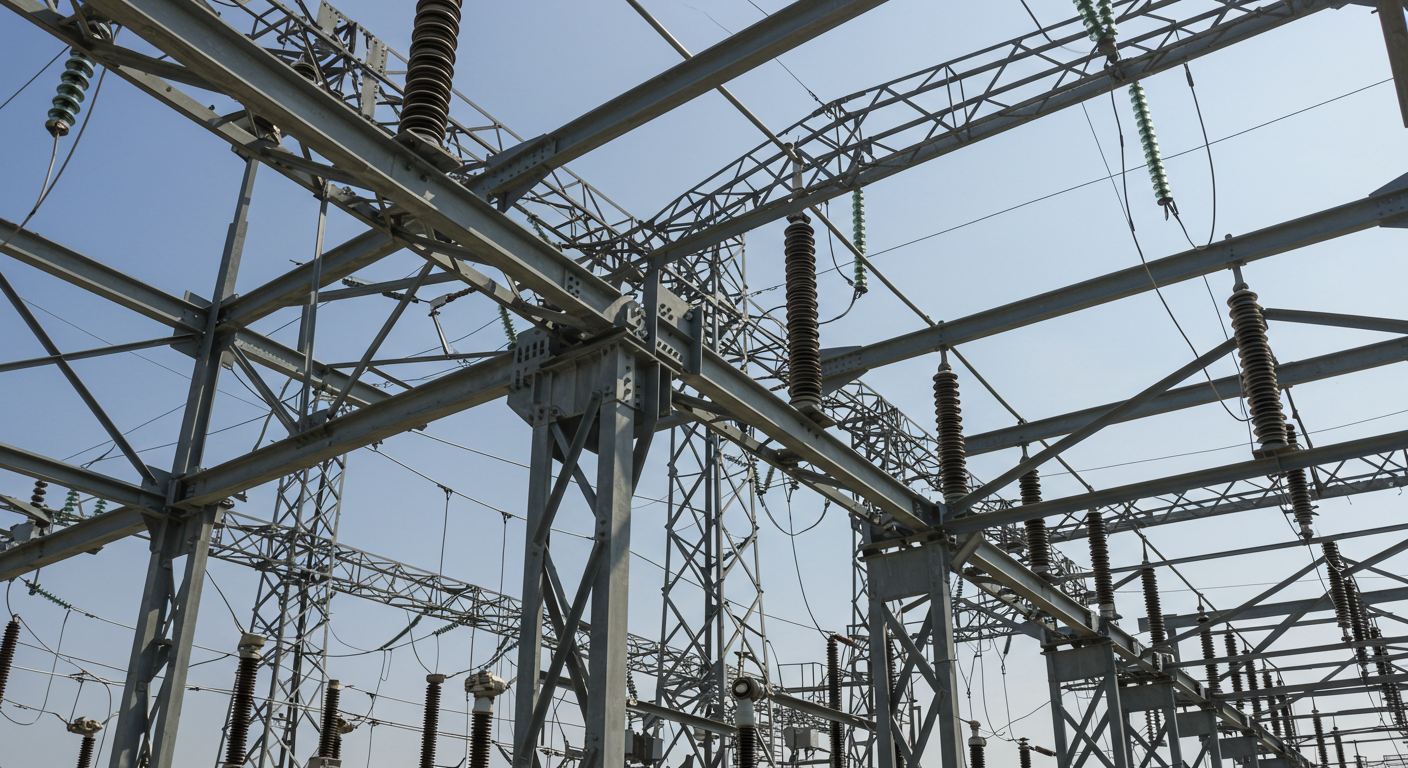

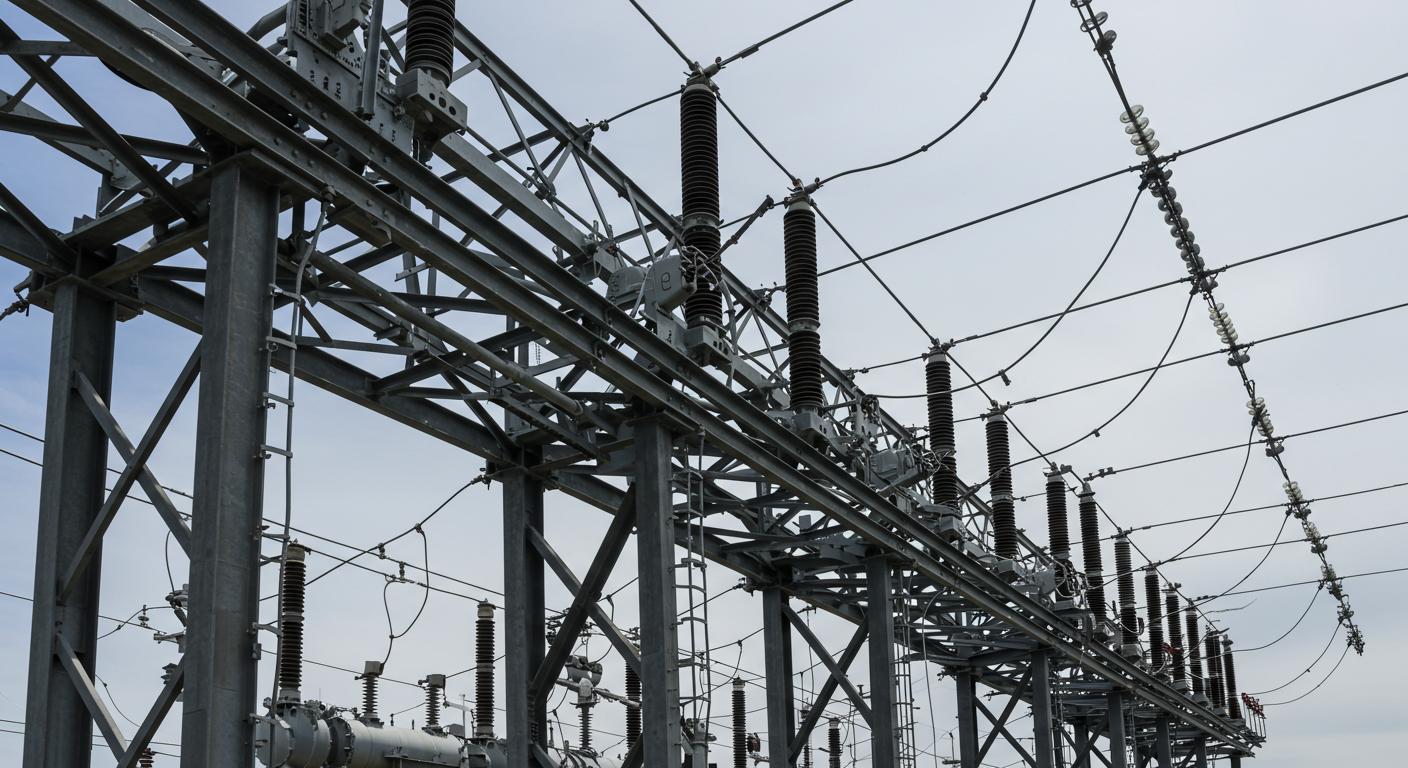

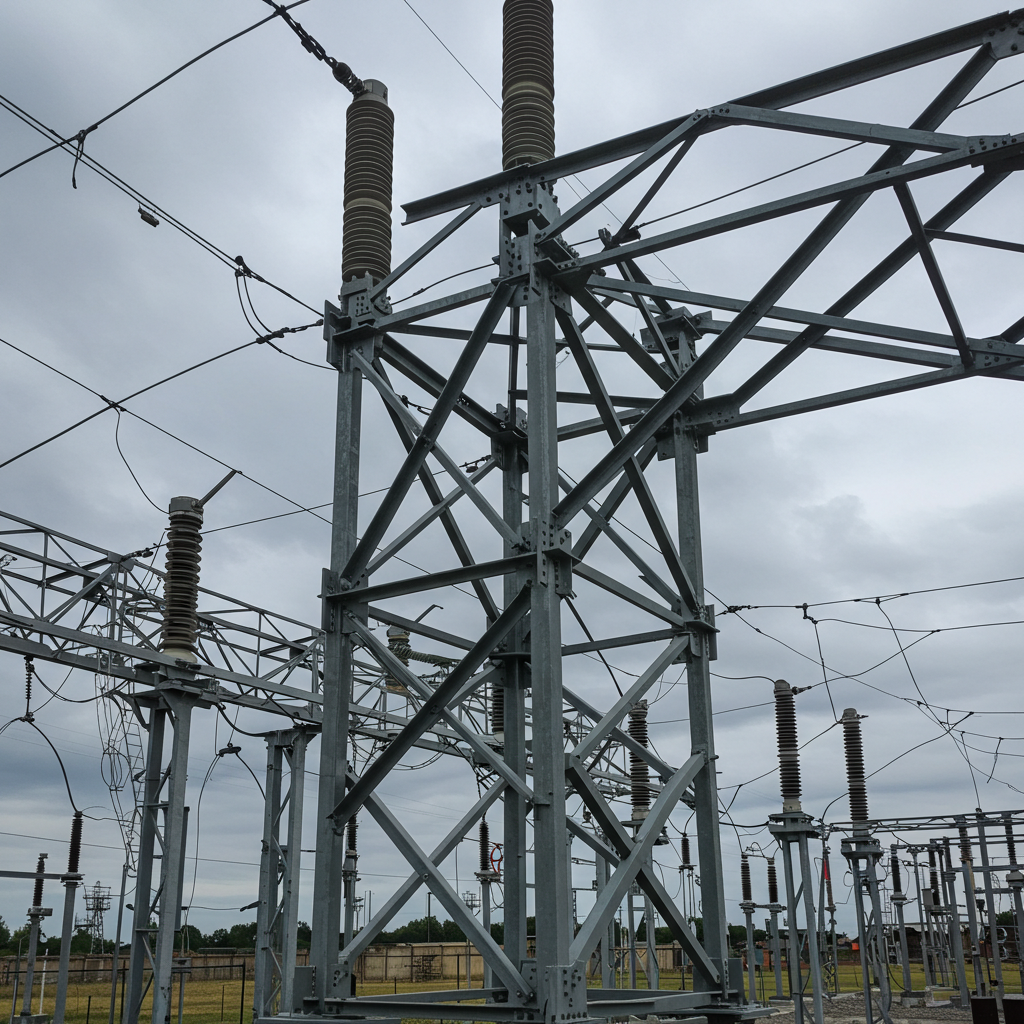

Substation Steel Structure
Our Substation Steel Structures provide reliable and durable support for power equipment. Built using high-strength steel and corrosion protection, they ensure long-term performance, safety, and efficient load management.
- Service Type: Substation Steel Structure Design, Fabrication, and Installation
- Material Expertise: High-grade structural steel (Q235, Q355, Q420)
- Design Standards: ISO 9001:2015, AWS D1.1, ASTM standards
- Surface Treatment: Hot-Dip Galvanizing or Powder Coating
- Applications: High-voltage substations, industrial power distribution, and renewable energy facilities
Overview
Our Substation Steel Structures are designed to provide robust and stable support for high-voltage power equipment in electric substations. Constructed using high-grade steel, these structures offer excellent corrosion resistance, wind stability, and load-bearing capacity, ensuring long-term reliability and safety. Their modular and customizable design allows for flexible installations, accommodating switchgear, transformers, busbars, and control systems. Ideal for utility companies, industrial plants, and renewable energy installations, these structures are tailored to meet specific voltage and site requirements.
- High-Strength Steel Construction: Built using structural steel to handle heavy loads and high-voltage equipment.
- Corrosion Protection: Hot-dip galvanized or powder-coated finish ensures long-term resistance to rust and environmental wear.
- Wind and Seismic Resistance: Designed to withstand high winds, seismic events, and extreme weather conditions.
- Customizable Configurations: Tailored designs to support transformers, busbars, switchgear, and control panels.
- Efficient Load Distribution: Optimized to evenly distribute loads, reducing stress on the structure and increasing its service life.
- Modular Installation: Modular, pre-fabricated components ensure quick and efficient on-site assembly.
- Safety Features: Includes grounding systems and protective measures for operator safety and equipment protection.
- High-Voltage Substations: Supporting primary substations for transmission and distribution networks.
- Industrial Power Distribution: Providing infrastructure for factories, mining sites, and industrial plants.
- Renewable Energy Projects: Facilitating energy distribution from wind, solar, and hydroelectric power plants.
Our Substation Steel Structures undergo stringent inspections and quality checks throughout design, production, and installation to meet international safety and performance standards.
Feature
Long-Lasting and Reliable Performance:
Built with high-grade steel and protective coatings, our Substation Steel Structures provide reliable service for over 30 years. Their design ensures durability and stability, even in harsh conditions.
Optimized for High-Voltage Equipment:
Our structures are engineered to support heavy electrical equipment such as transformers, circuit breakers, and switchgear, while maintaining proper load distribution to prevent structural stress.
Safety and Compliance Focused:
We adhere to ISO9001:2015, AWS D1.1, and other international standards to ensure safety and reliability. Integrated safety features include grounding, lightning protection, and secure connections.
Efficient Installation and Maintenance:
Our modular, pre-fabricated design enables fast and efficient installation, reducing construction time and costs. The design also allows for easy maintenance and future upgrades.
Specification
| Details | Additional Information |
|---|---|
| Brand: Xiangyue (XY Tower) | Height Options: Customizable according to site layout and voltage requirements |
| Service Offering: Substation Steel Structure Design, Fabrication, and Installation | Environmental Adaptability: Suitable for high winds, seismic zones, and outdoor applications |
| Expertise: Specialized in steel structures for high-voltage substations and power distribution systems | Load Capacity: Designed to support heavy electrical equipment such as transformers, busbars, and control gear |
| Design Standards: Adheres to ISO9001:2015, AWS D1.1, and ASTM standards | Certification: Meets international safety, quality, and structural standards |
| Material Specification: High-grade structural steel, including Q235, Q355, and Q420 | Customization Level: Fully tailored to meet project-specific and site-specific requirements |
| Welding Standard: Certified AWS D1.1 welding procedures | Installation Assistance: Provides on-site guidance and modular assembly instructions |
| Surface Treatment: Hot-Dip Galvanizing or Powder Coating for corrosion resistance | Global Reach: Serving clients worldwide with tailored solutions for local regulations |
| Quality Control: Comprehensive inspections during design, production, and installation | Post-Design Support: Ongoing maintenance, upgrade services, and technical support |
