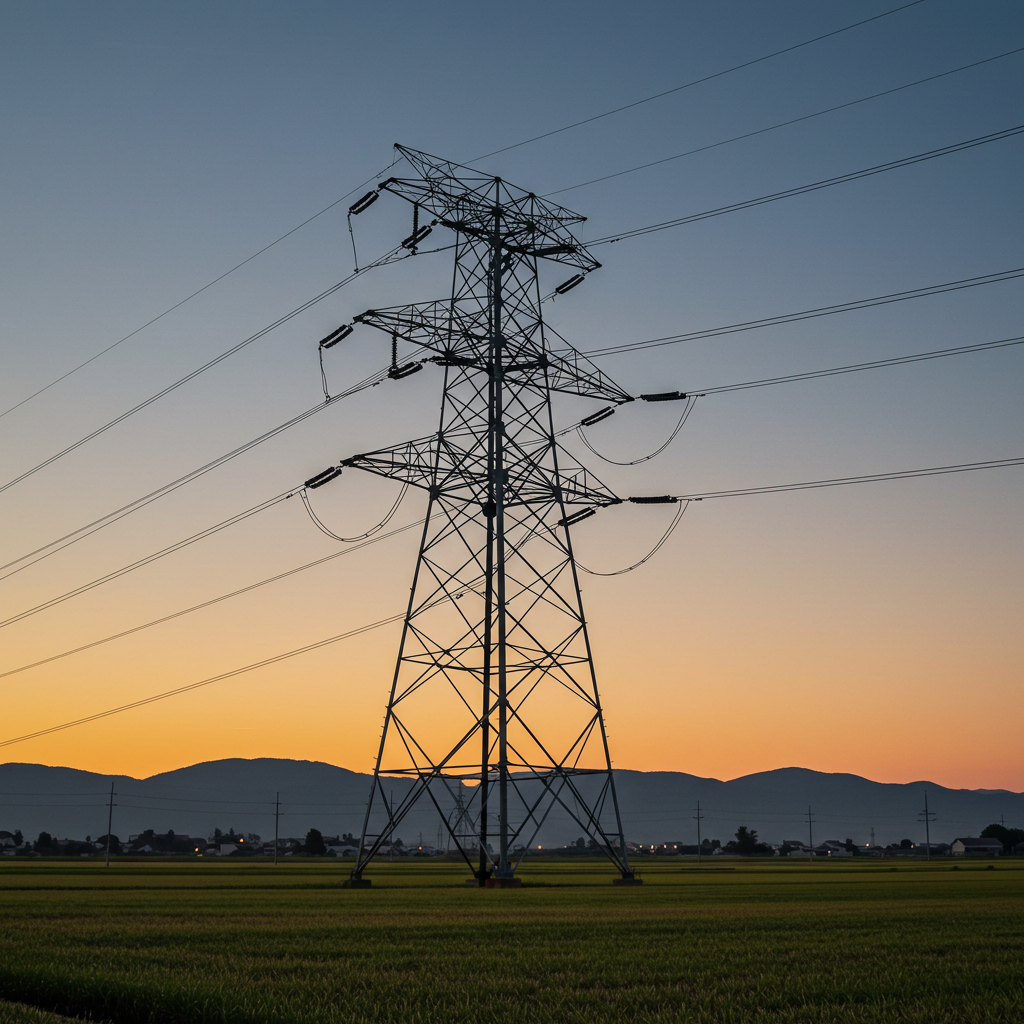

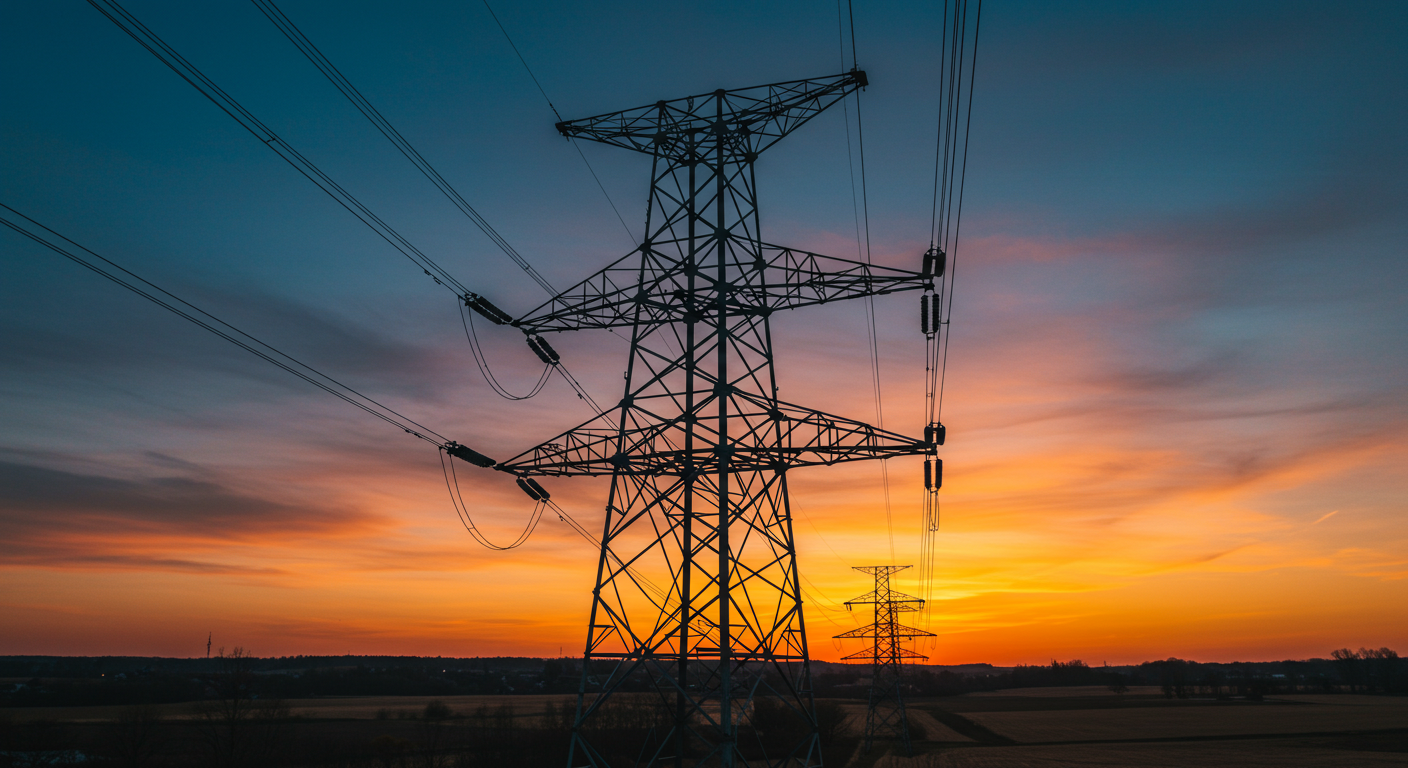

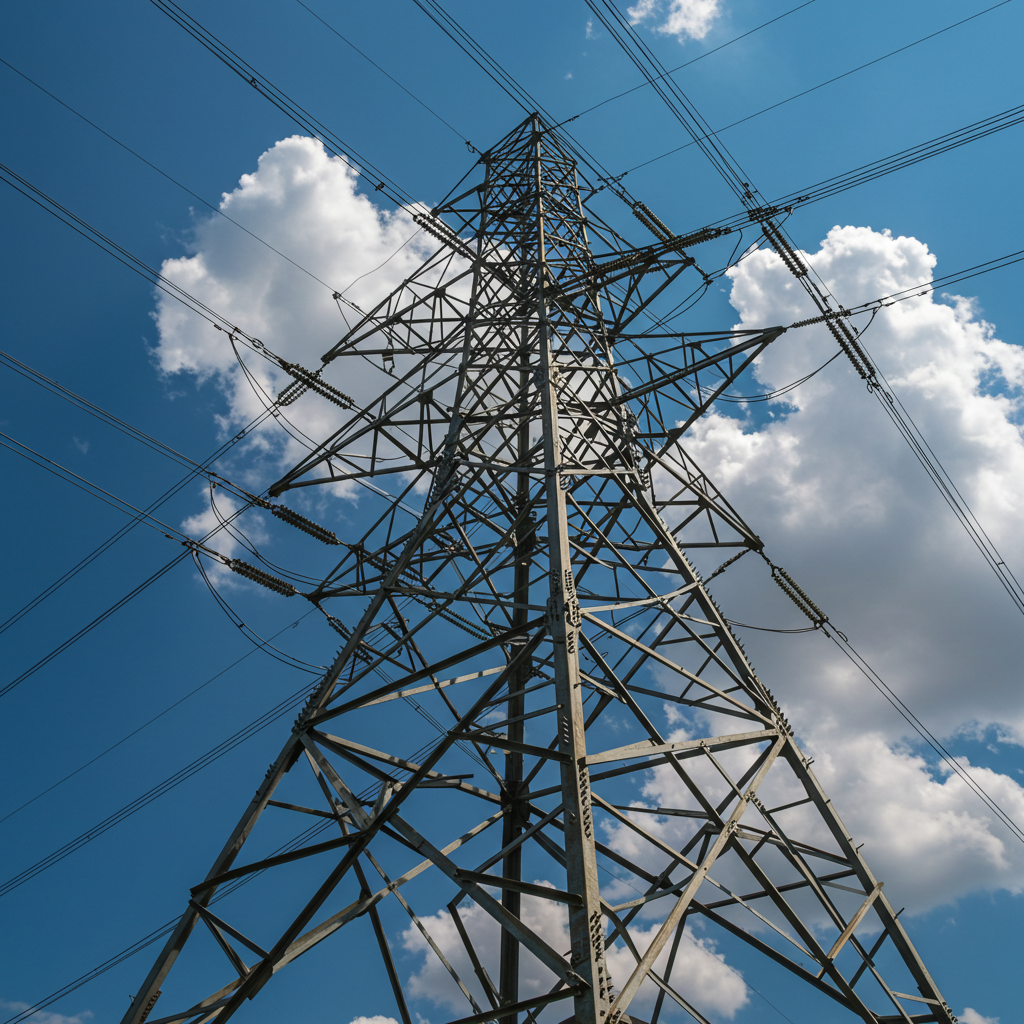

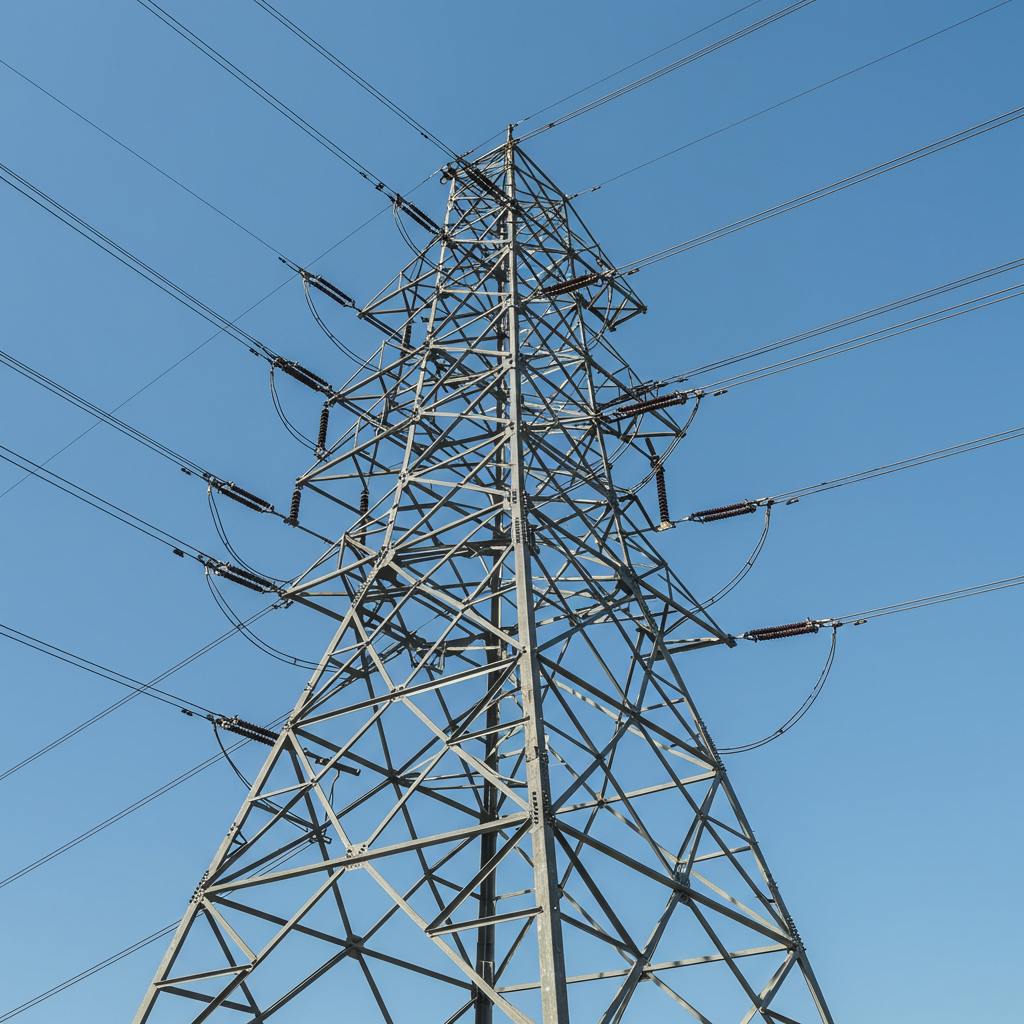

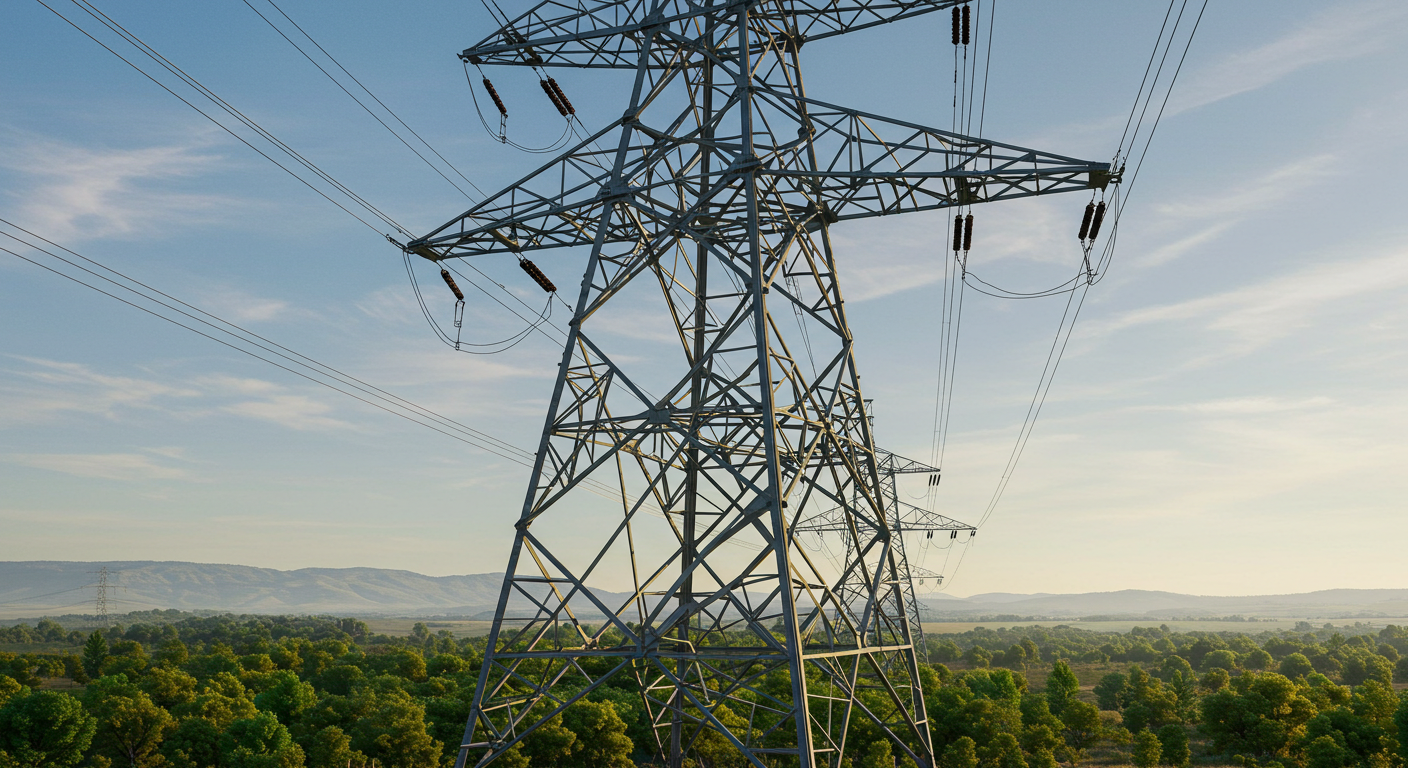

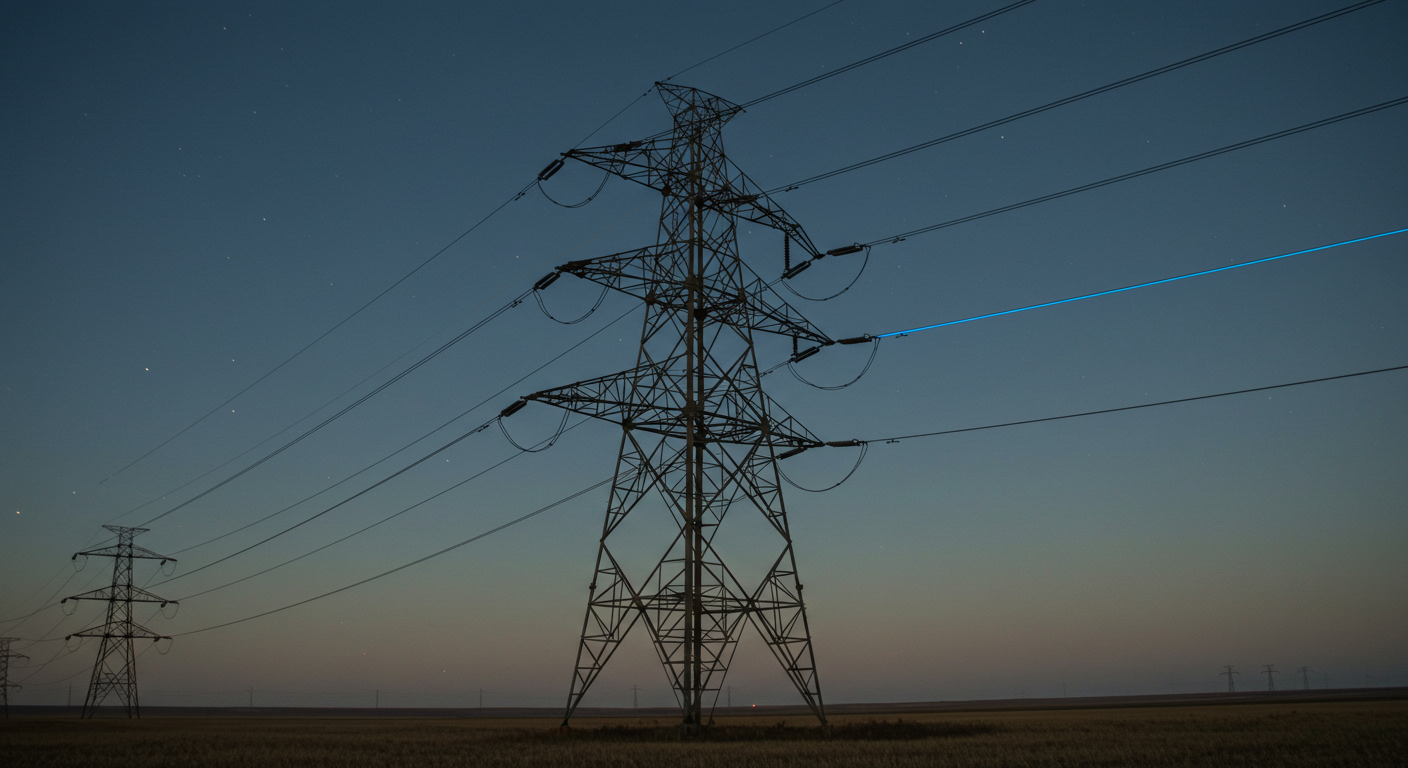

Transposition Tower
Our Transposition Towers are designed to balance electrical parameters through phase shifts in transmission lines. Built using high-grade steel, they provide superior load-bearing capacity and corrosion resistance, ensuring reliable and efficient power transmission.
- Service Type: Transposition Tower Design, Fabrication, and Installation
- Material Expertise: High-grade steel (Q235, Q355, Q420)
- Design Standards: ISO 9001:2015, AWS D1.1
- Surface Treatment: Hot-Dip Galvanizing (ASTM A123)
- Applications: High-voltage power grids, renewable energy transmission, industrial power networks
Overview
Our Transposition Towers are designed to facilitate the phase transposition of high-voltage transmission lines, which helps balance inductive and capacitive line parameters, reducing power losses and improving system efficiency. Built using high-strength steel and corrosion-resistant coatings, these towers provide stable and durable support for conductors during phase shifts, ensuring uninterrupted power transmission. Customizable to various configurations and voltages, they are suitable for power grids, renewable energy systems, and industrial power transmission projects.
- Phase Balancing Capability: Facilitates phase transposition to balance inductance and capacitance, reducing line losses.
- Durable Steel Construction: Made from high-strength steel for long-lasting performance and load-bearing capacity.
- Corrosion Protection: Hot-dip galvanized coating provides long-term resistance to rust and environmental wear.
- Wind and Seismic Resistance: Engineered to withstand extreme wind loads, seismic activity, and harsh weather conditions.
- Customizable Configurations: Available in various heights and designs to meet specific phase transposition and voltage requirements.
- Efficient Load Distribution: Optimized design ensures that loads from conductors are evenly distributed, minimizing structural stress.
- Quick Installation: Pre-fabricated components enable fast and efficient on-site assembly, reducing construction costs.
- High-Voltage Power Transmission: Used in regional and national power grids to balance transmission line parameters.
- Renewable Energy Systems: Supporting wind and solar power networks with balanced electrical parameters.
- Industrial Power Networks: Enhancing power efficiency in large-scale industrial transmission systems.
Our Transposition Towers undergo comprehensive quality checks during design, fabrication, and installation to ensure compliance with international safety and performance standards.
Feature
Long-Lasting and Reliable Performance:
Constructed with high-strength steel and protective coatings, our Transposition Towers are designed for a service life exceeding 30 years. They offer resistance to corrosion, wind, and other environmental stresses, ensuring reliable power transmission.
Optimized for Load and Electrical Efficiency:
The tower design optimizes conductor positioning for phase transposition, ensuring efficient power flow and balanced electrical parameters. This design reduces system losses and enhances network stability.
Safety and Compliance Focused:
We adhere to ISO9001:2015, AWS D1.1, and other international standards to ensure that the towers meet structural, safety, and performance requirements. Safety features such as grounding and lightning protection are included in every design.
Efficient Installation and Maintenance:
Our modular, pre-fabricated design reduces on-site installation time, ensuring timely project completion. The design also allows for easy maintenance and future upgrades to adapt to changing power demands.
Specification
| Details | Additional Information |
|---|---|
| Brand: Xiangyue (XY Tower) | Height Options: Customizable from 10m to over 120m depending on project needs |
| Service Offering: Transposition Tower Design, Fabrication, and Installation | Environmental Adaptability: Suitable for high winds, seismic zones, and diverse environmental conditions |
| Expertise: Specialized in transposition towers for high-voltage grids and renewable energy systems | Load Capacity: Designed to support conductors and heavy transmission components |
| Design Standards: Adheres to ISO9001:2015, AWS D1.1, and power industry standards | Certification: Meets international safety, quality, and structural certifications |
| Material Specification: High-grade steel, including Q235, Q355, and Q420 | Customization Level: Fully tailored designs to meet site-specific requirements |
| Welding Standard: Certified AWS D1.1 welding procedures | Installation Assistance: Provides on-site guidance and modular assembly instructions |
| Surface Treatment: Hot-Dip Galvanizing and protective coatings for corrosion resistance | Global Reach: Serving clients worldwide with tailored solutions for local regulations |
| Quality Control: Comprehensive inspections during design, production, and installation | Post-Design Support: Ongoing maintenance, upgrade services, and technical support |
